Visual Inspection

Visually check the following parts and systems.

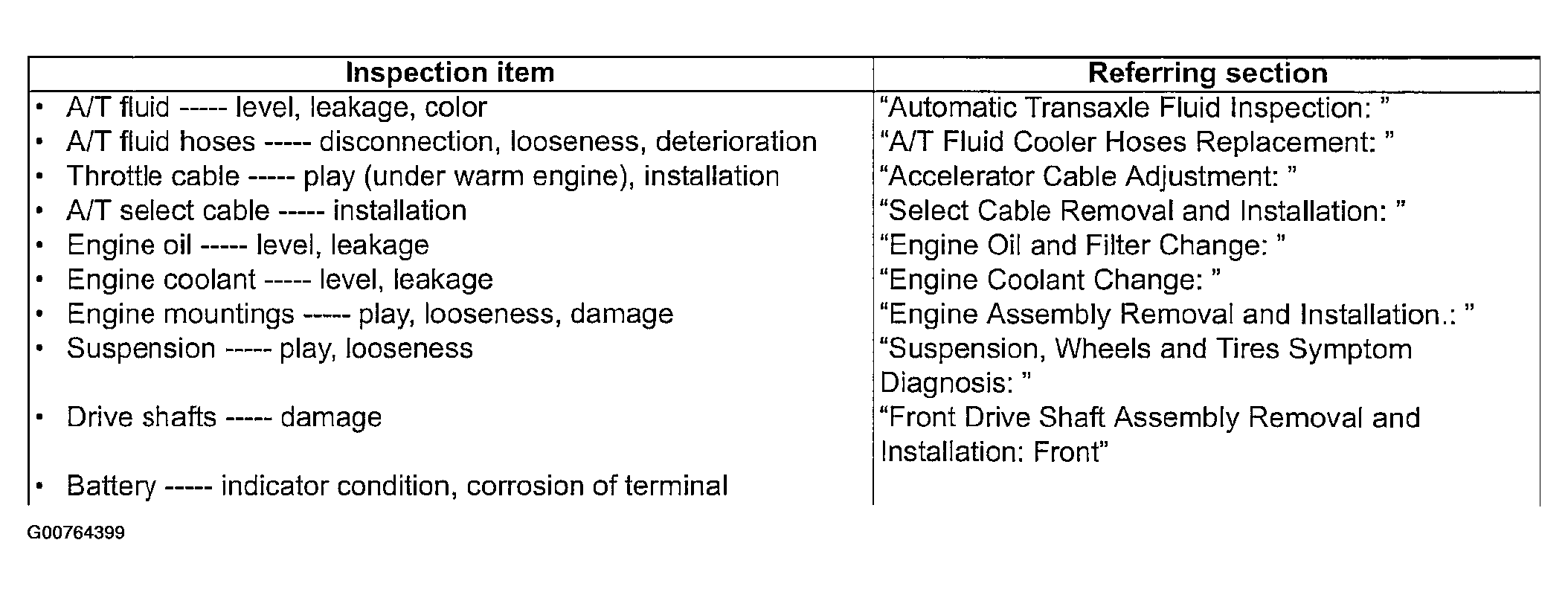

Fig 1: Visual Inspection Chart (1 Of 2)
G00764399Courtesy of SUZUKI OF AMERICA CORP.

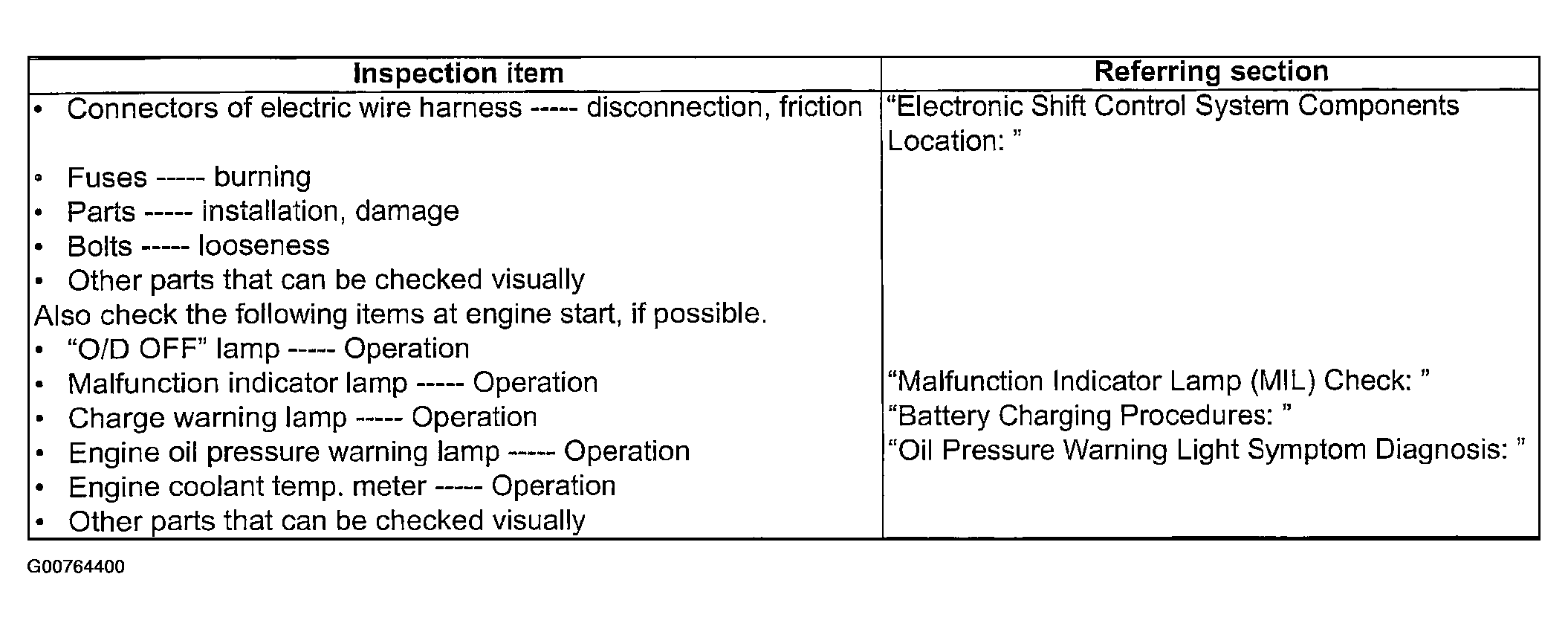

Fig 2: Visual Inspection Chart (2 Of 2)
G00764400Courtesy of SUZUKI OF AMERICA CORP.
