TCM Power and Ground Circuit Check: Troubleshooting

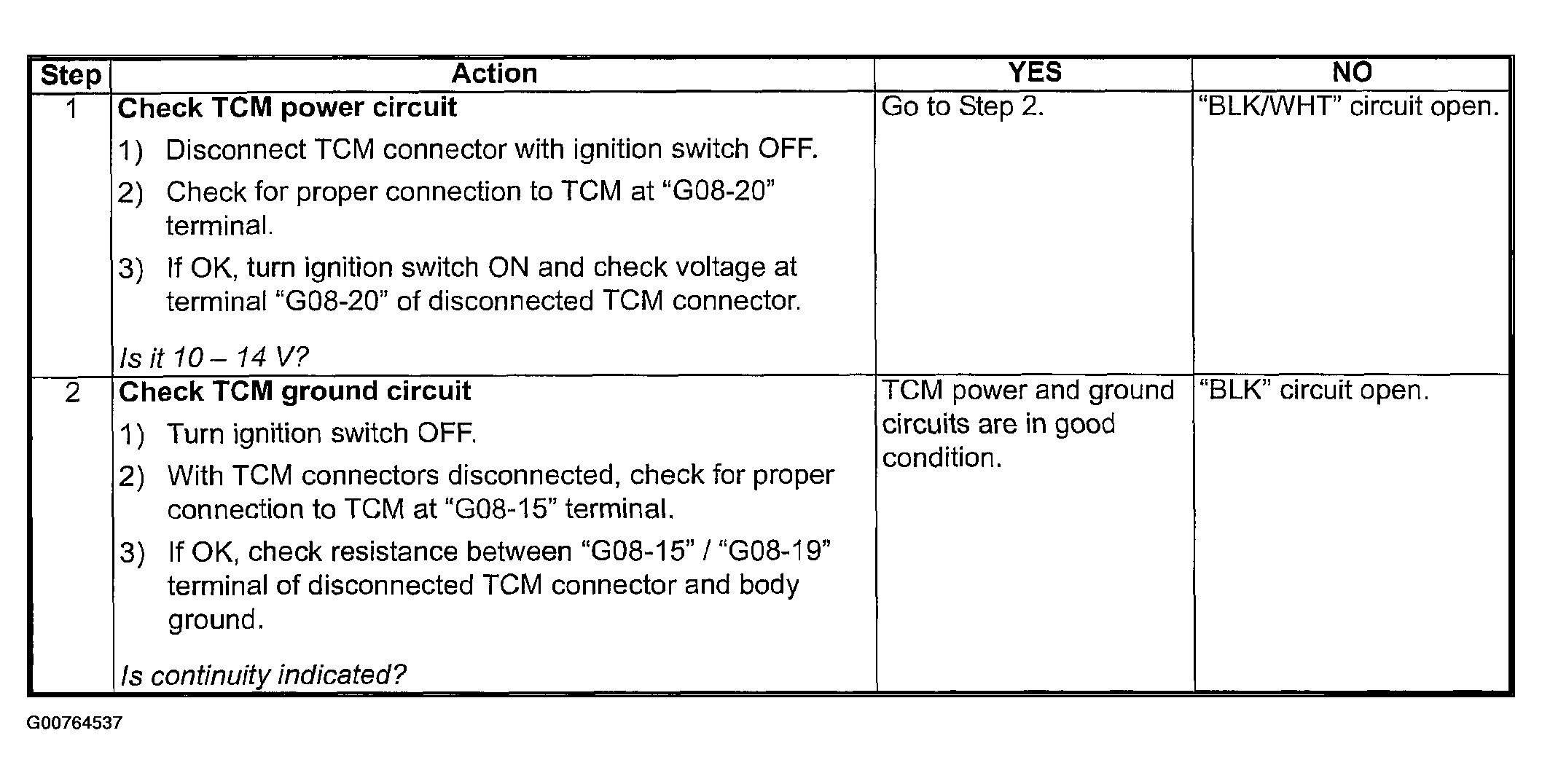

Fig 1: TCM Power and Ground Circuit Troubleshooting Chart
G00764537Courtesy of SUZUKI OF AMERICA CORP.
