Fail Safe Table

This function is provided by the safe mechanism that assures safe driveability even when the solenoid valve, sensor or its circuit fails. The following table shows the fail safe function for each fail condition of sensor, solenoid, TCM or its circuit.

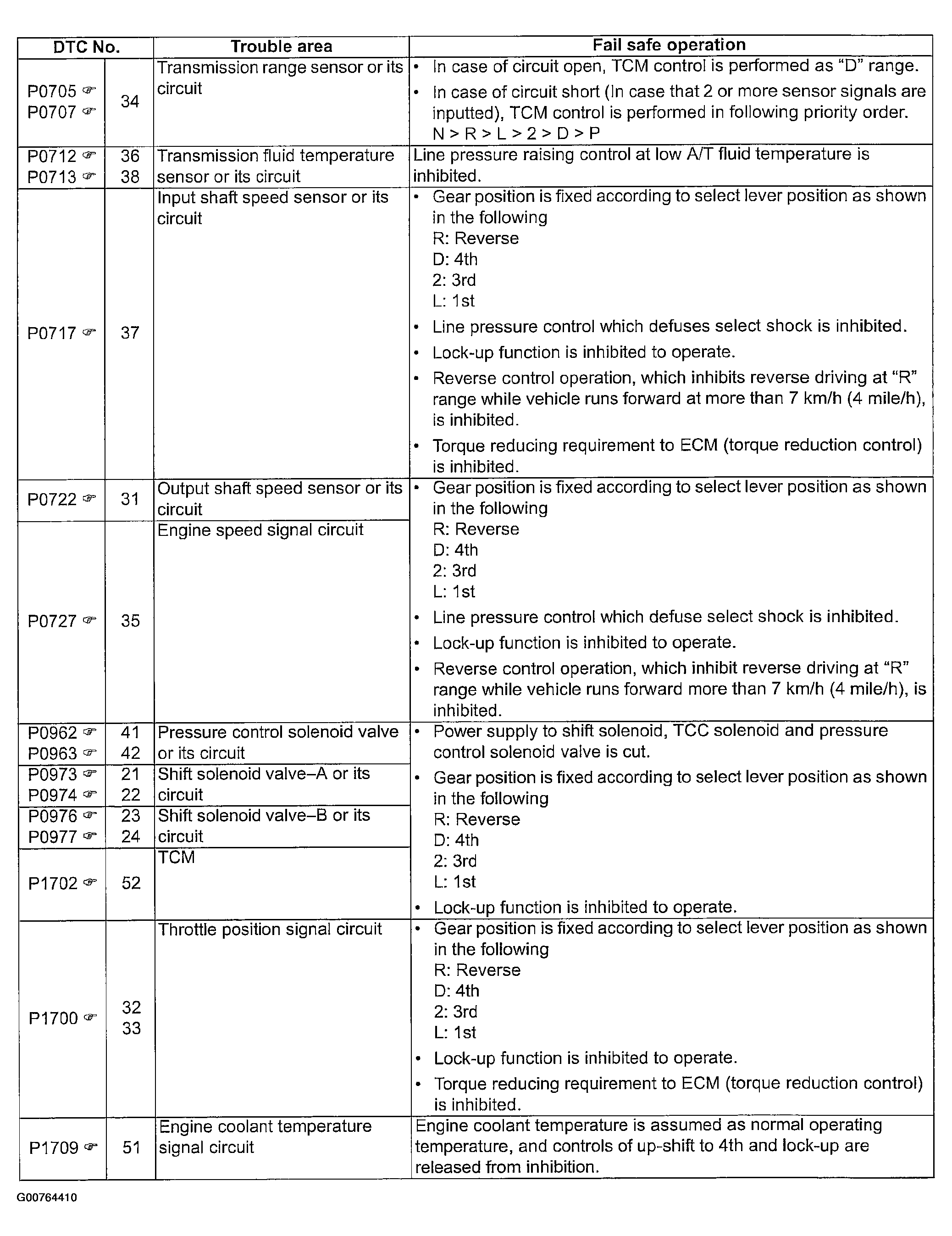

Fig 1: Fail Safe Table (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

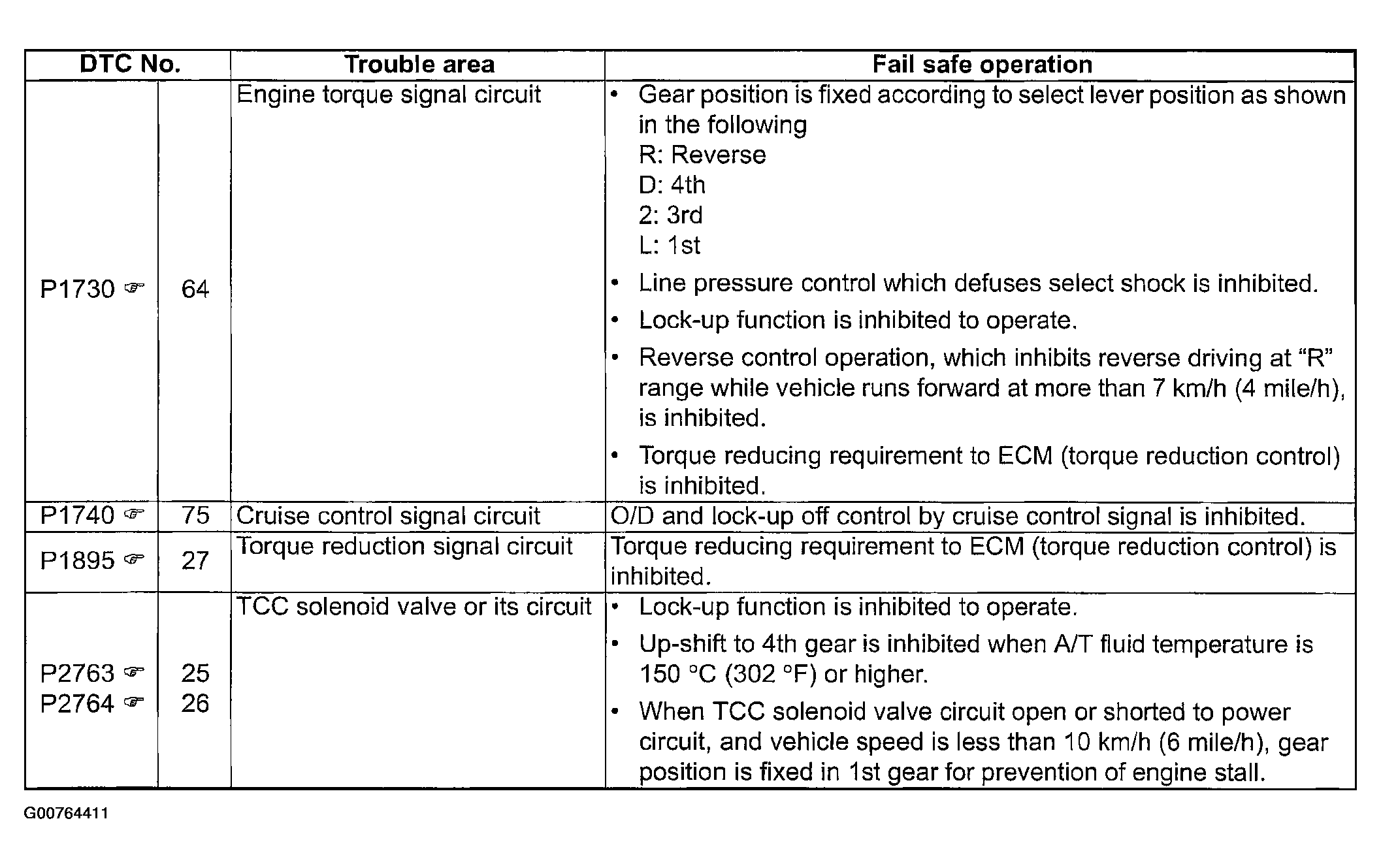

Fig 2: Fail Safe Table (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
