A/T System Check: Notes

Refer to the following items for the details of each step.

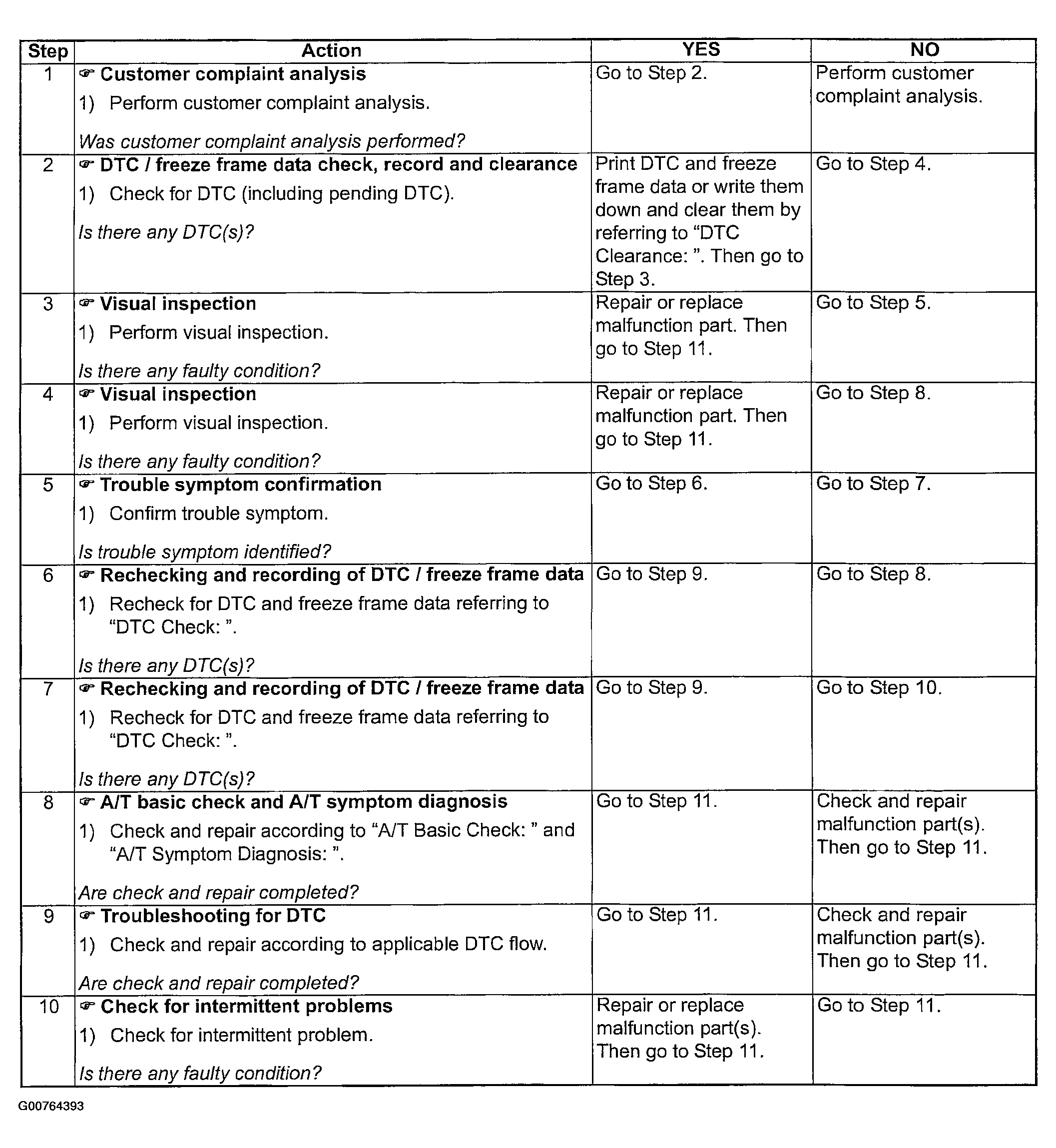

Fig 1: A/T System Check Table (1 Of 2)
G00764393Courtesy of SUZUKI OF AMERICA CORP.

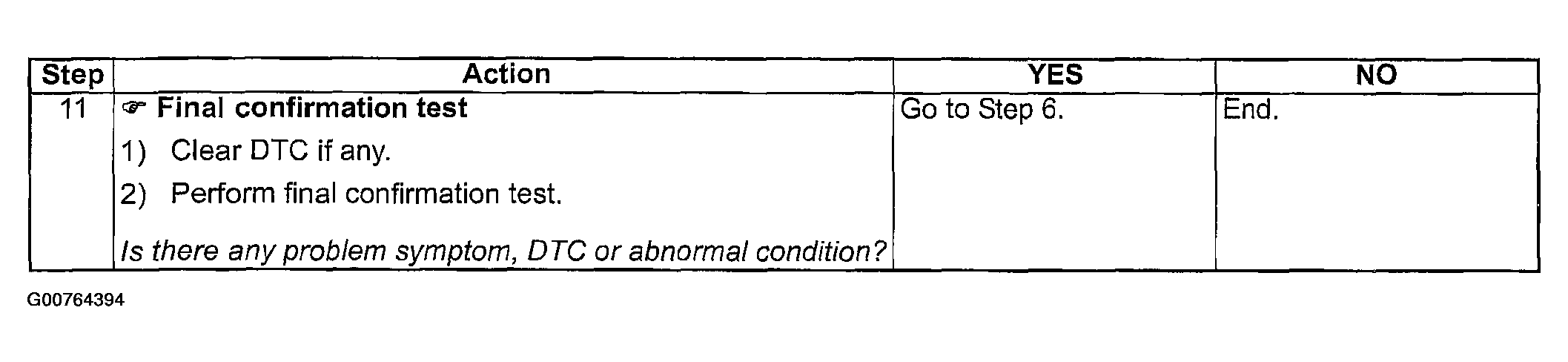

Fig 2: A/T System Check Table (2 Of 2)
G00764394Courtesy of SUZUKI OF AMERICA CORP.
