Electronic Shift Control System Components Location

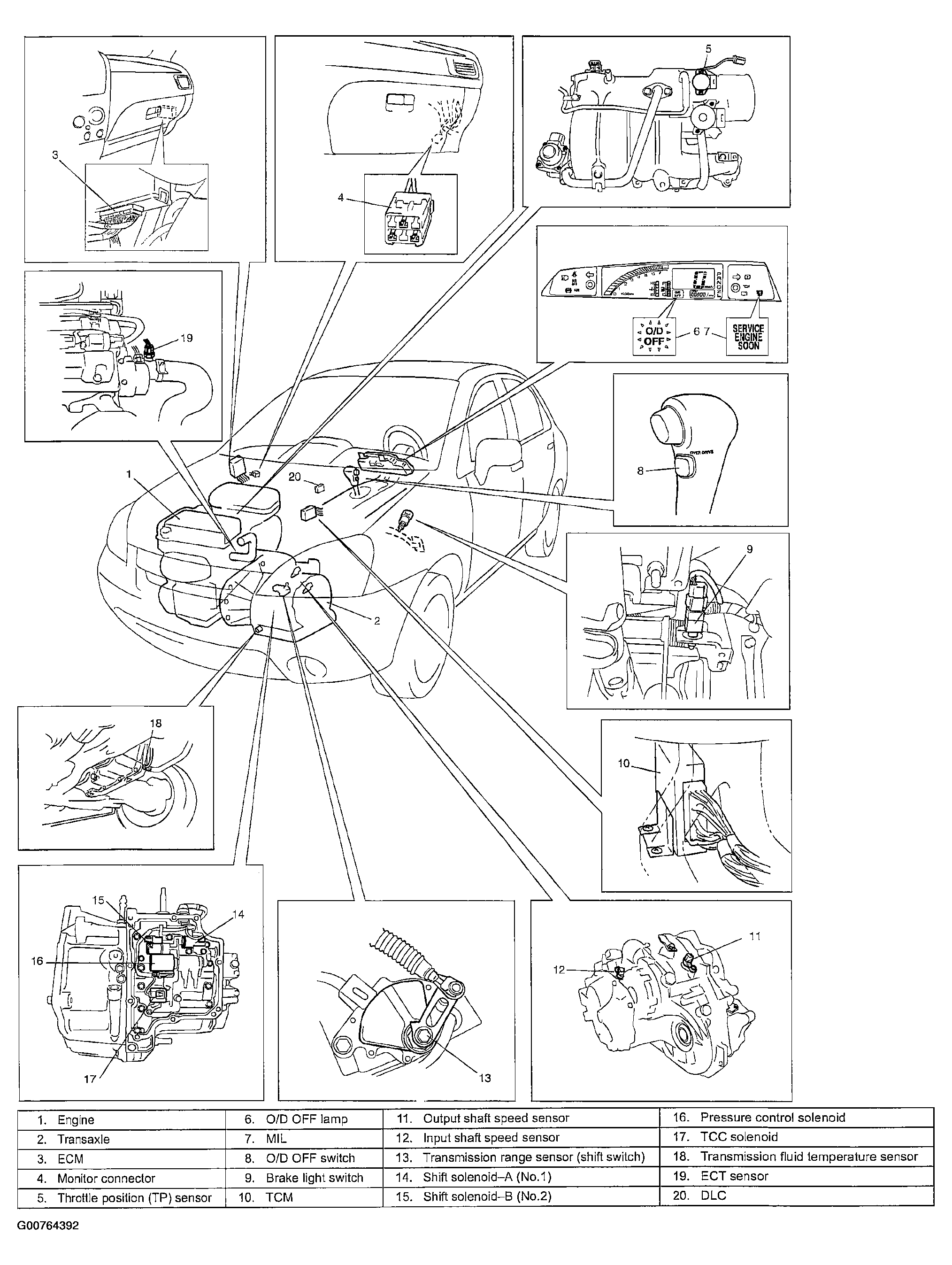

Fig 1: Locating Electronic Shift Control System Components
G00764392Courtesy of SUZUKI OF AMERICA CORP.
