Rear Strut Assembly Removal and Installation: Installation

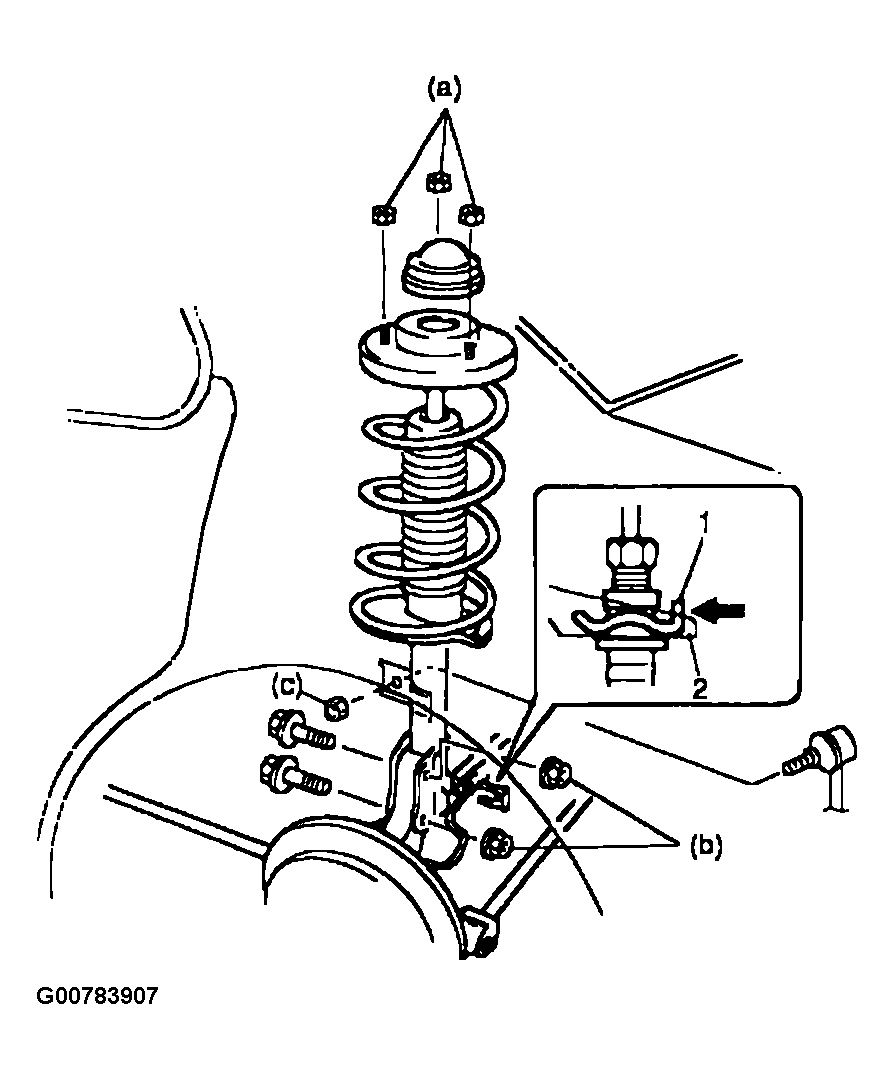

- Install strut by reversing Removal procedure. Insert bracket bolts in such a direction as shown in figure.
- Torque all fasteners to specification.
Tightening torque
Strut support nut (a): 28 N.m (2.8 kg-m, 20.5 Ft.Lbs)
Strut bracket nut (b): 90 N.m (9.0 kg-m, 65.0 Ft.Lbs)
Stabilizer joint nut (c): 50 N.m (5.0 kg-m, 36.5 Ft.Lbs)
NOTE:
Do not twist brake hose when installing it. Install E-ring (1) as far as it fits to bracket (2) as shown.
