When replacing compressor

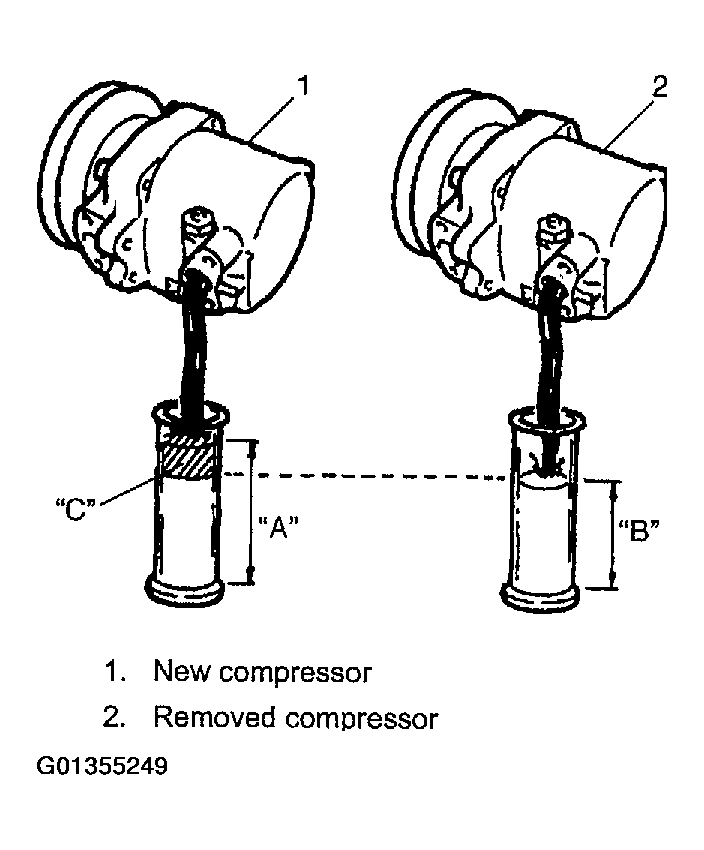

Compressor oil is sealed in each new compressor by the amount required for A/C system. Therefore, when using a new compressor for replacement, drain excess oil from it by the amount calculated as follows.
"C" = "A" - "B"
"C": Amount of oil to be drained
"A": Amount of oil sealed in a new compressor
"B": Amount of oil remaining in removed compressor
NOTE:
Compressor assembly supplied from factory is filled up with the following amount of oil.
Oil amount in compressor
100 cm 3 (100 cc)
