Replenishing Compressor Oil

It is necessary to replenishing specified amount of compressor oil to compressor (1) from compressor suction side hole (2) before evacuating and charging refrigerant.

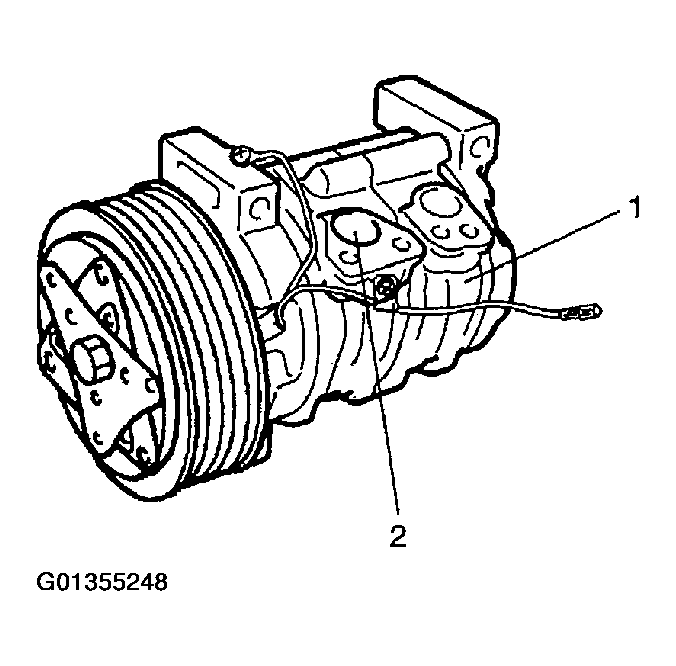

Fig 1: Identifying Compressor Oil
G01355248Courtesy of SUZUKI OF AMERICA CORP.
