A/C Control Relays Inspection

  1. Disconnect negative cable at battery.
  2. Remove A/C compressor relay (1) or A/C condenser fan relay (2) from relay box (3).
  3. Structure of A/C compressor relay or A/C condenser fan relay is the same as that of main relay. Check its resistance and operation using the same procedure as that for main relay.

    If found defective, replace.

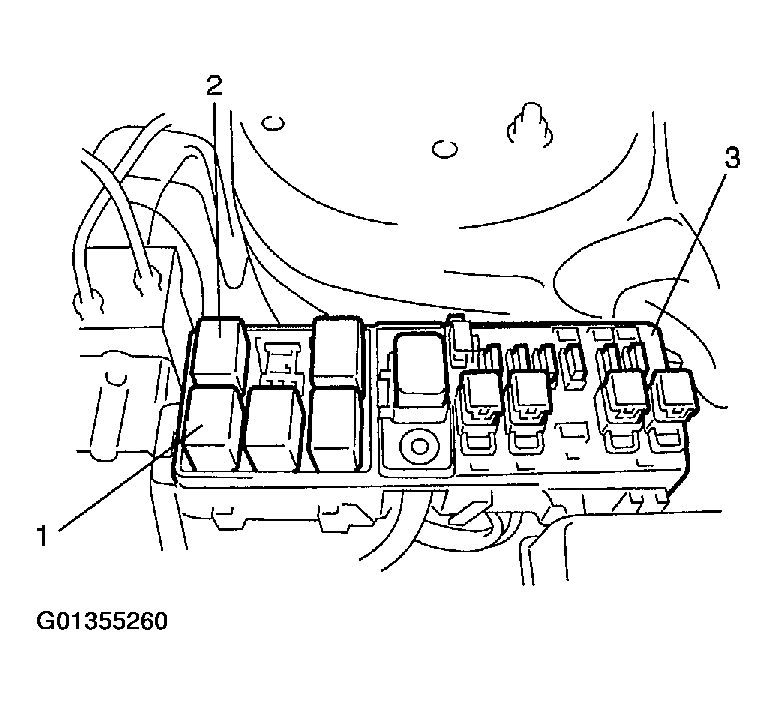

    Fig 1: Removing A/C Compressor Relay Or A/C Condenser Fan Relay From Relay Box
    G01355260Courtesy of SUZUKI OF AMERICA CORP.
