Sub-Cool System Description

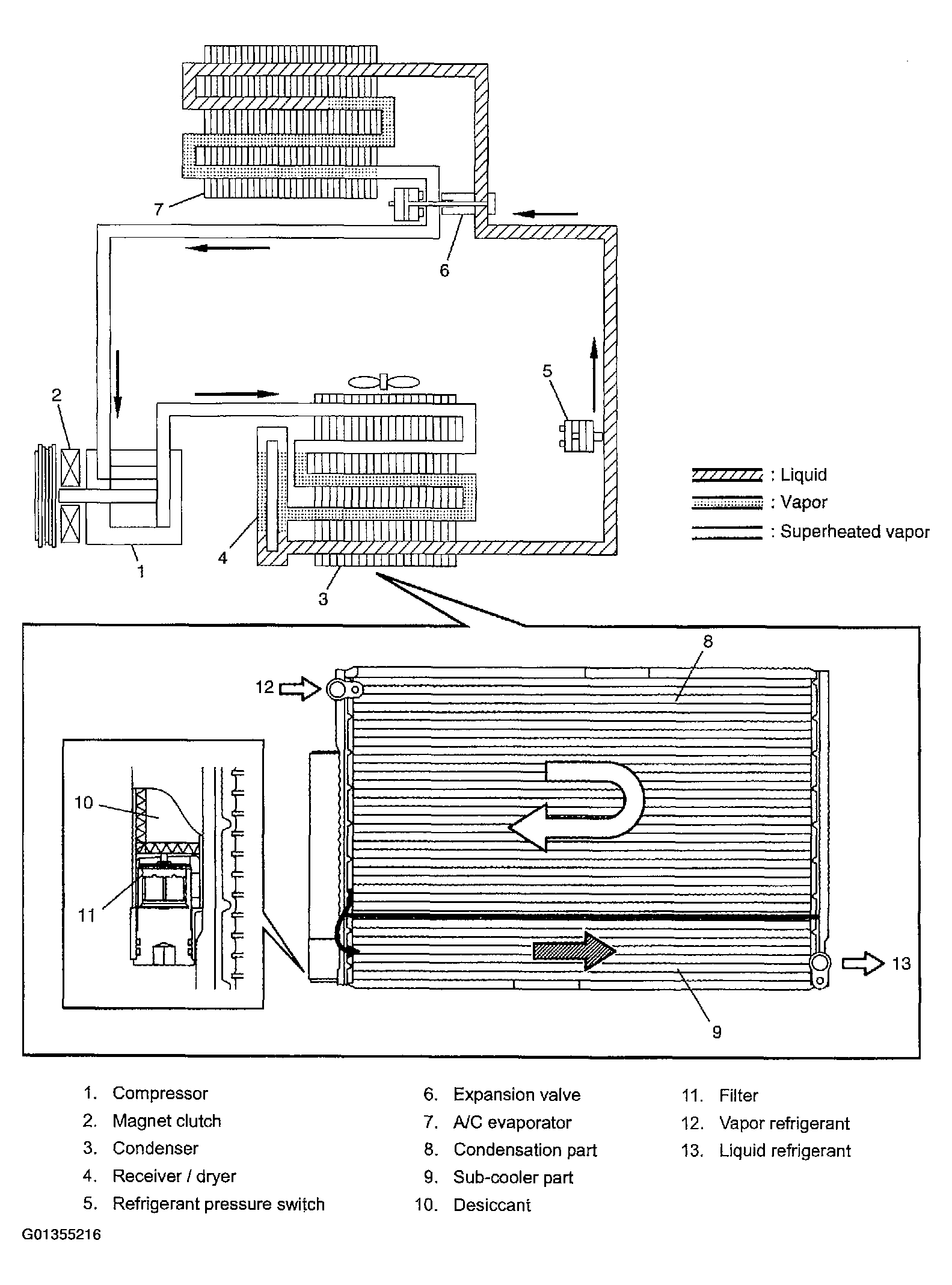

In the sub-cool A/C system (condenser integrated with receiver / dryer), the condenser divided the inside into the condensation part and the sub-cooler part and located the receiver / dryer between those. In the receiver / dryer, refrigerant is separated in vapor refrigerant and liquid refrigerant. And only the liquid refrigerant is delivered to the sub-cooler part of the condenser. The refrigerant is supercooled by the sub-cooler part of the condenser.
