DTC Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Aerio. However, it is still accessible from the selected car via links, so may be relevant.

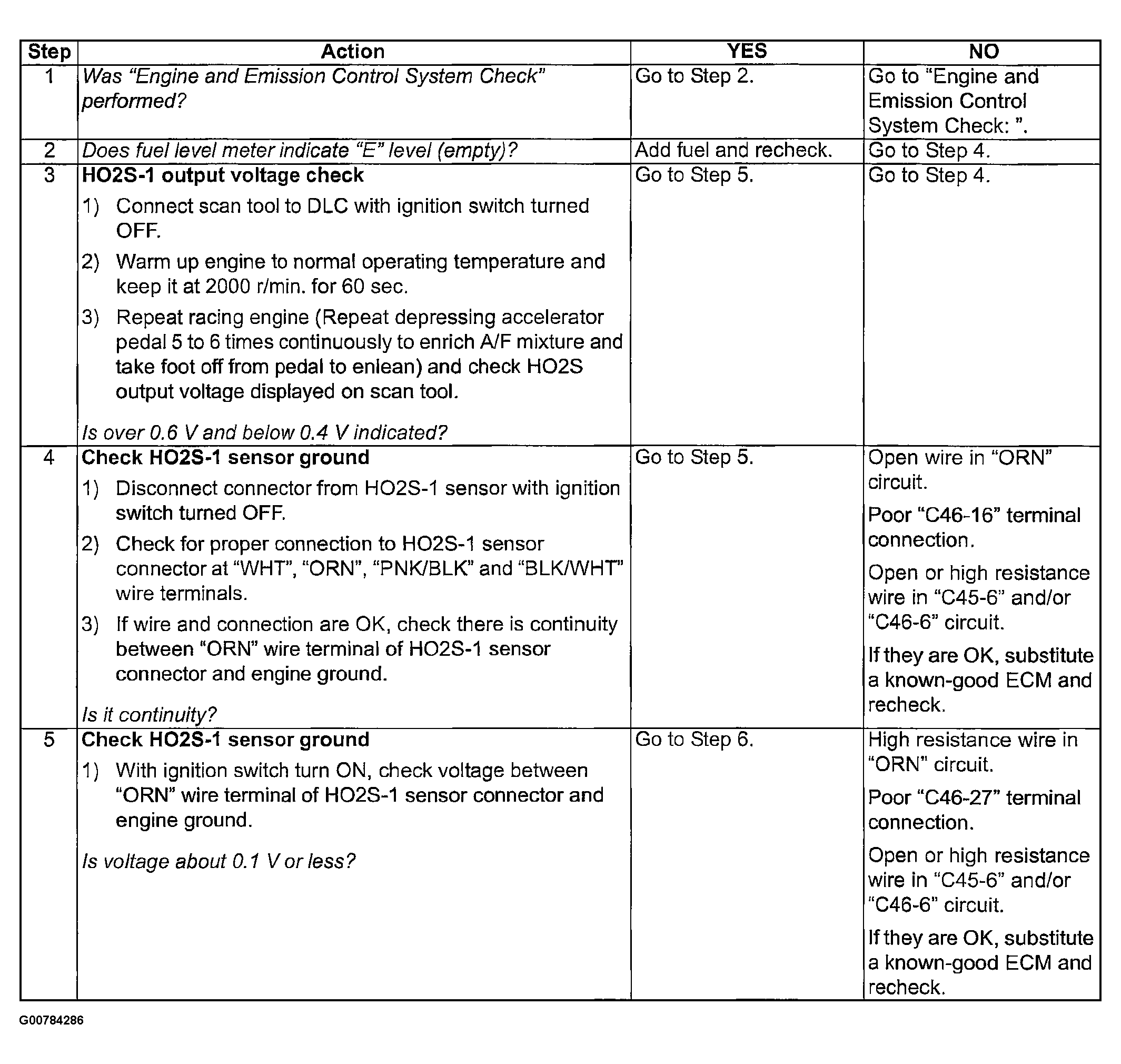

Fig 1: DTC Troubleshooting Chart (1 of 2)
G00784286Courtesy of SUZUKI OF AMERICA CORP.

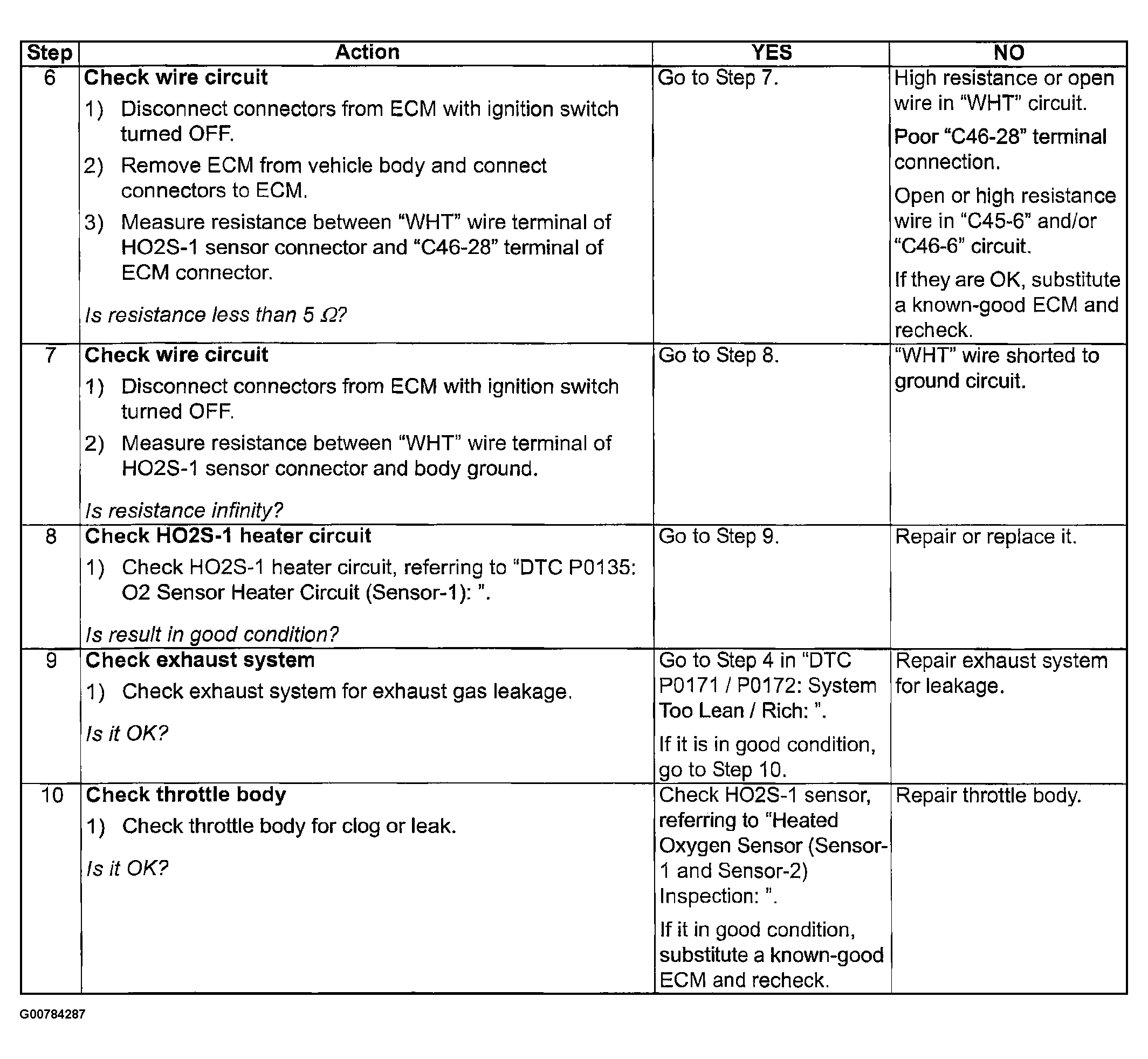

Fig 2: DTC Troubleshooting Chart (2 of 2)
G00784287Courtesy of SUZUKI OF AMERICA CORP.
