Timing Chain Cover Components

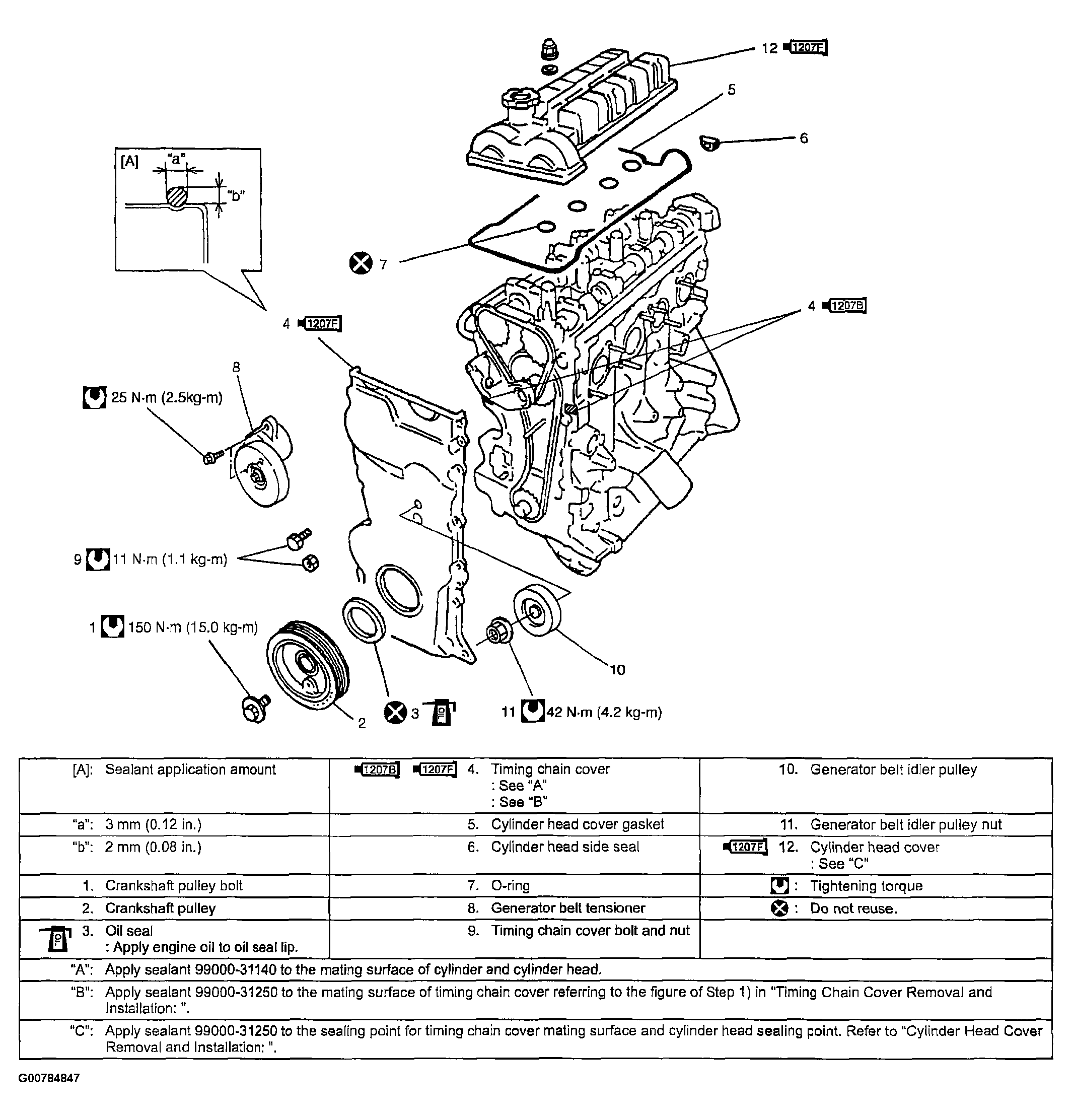

Fig 1: Identifying Timing Chain Cover Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
