Engine Mountings Components

WARNING:
  • "A": Tighten mounting member to suspension frame nuts or bolts first, and tighten mounting member to body bolts with specified torque.
  • "B": Tighten engine right mounting No. 1 bracket bolts first, and tighten engine left mounting bolts with specified torque.

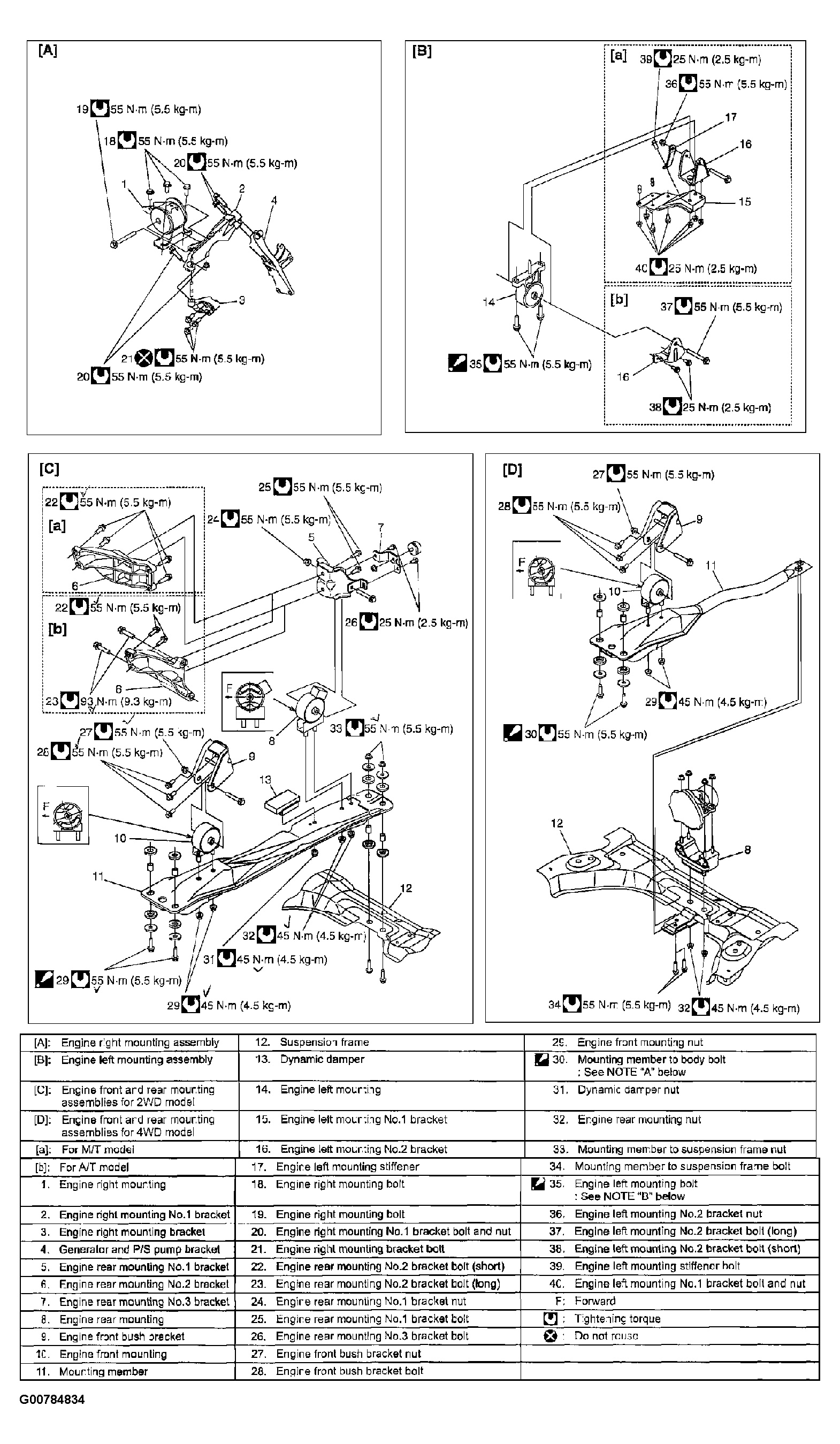

Fig 1: Engine Mounting Component Torque Specifications Table
G00784834Courtesy of SUZUKI OF AMERICA CORP.
