Power Door Mirror Control System (If Equipped) Symptom Diagnosis

NOTE: Fuse name (" ") is shown on the fuse box cover.

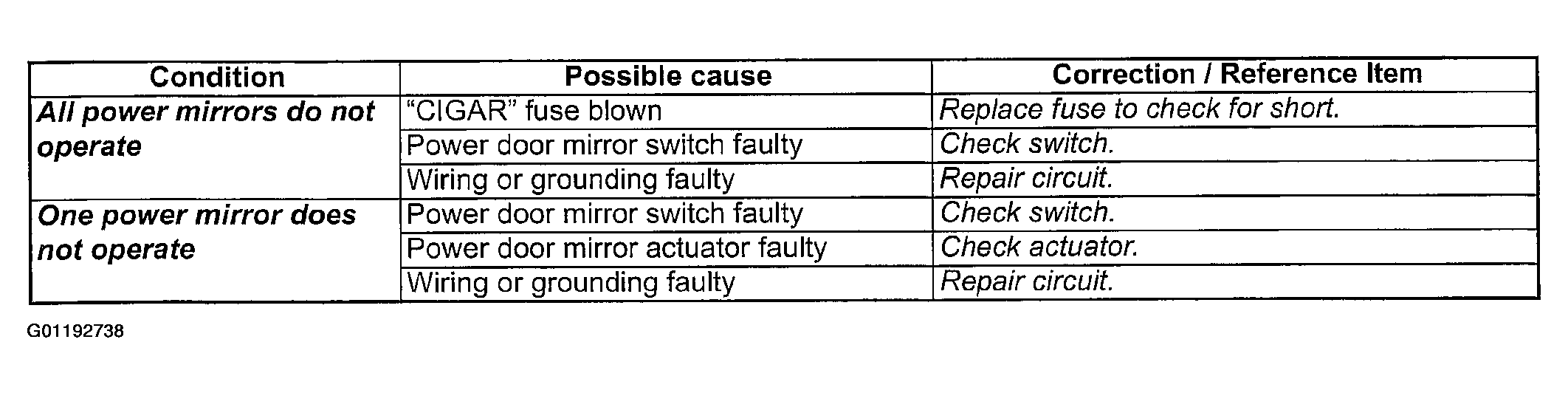

Fig 1: Power Door Mirror Control System Symptom Diagnosis Chart

Courtesy of SUZUKI OF AMERICA CORP.
