Door Mirror Heater Switch (If Equipped) Inspection

  1. Remove mirror heater switch from instrument panel.
  2. Check for continuity between terminals at each switch position as shown. If check result is not as specified, replace switch.
    Fig 1: Door Mirror Heater Switch Continuity Chart
    G01192797Courtesy of SUZUKI OF AMERICA CORP.

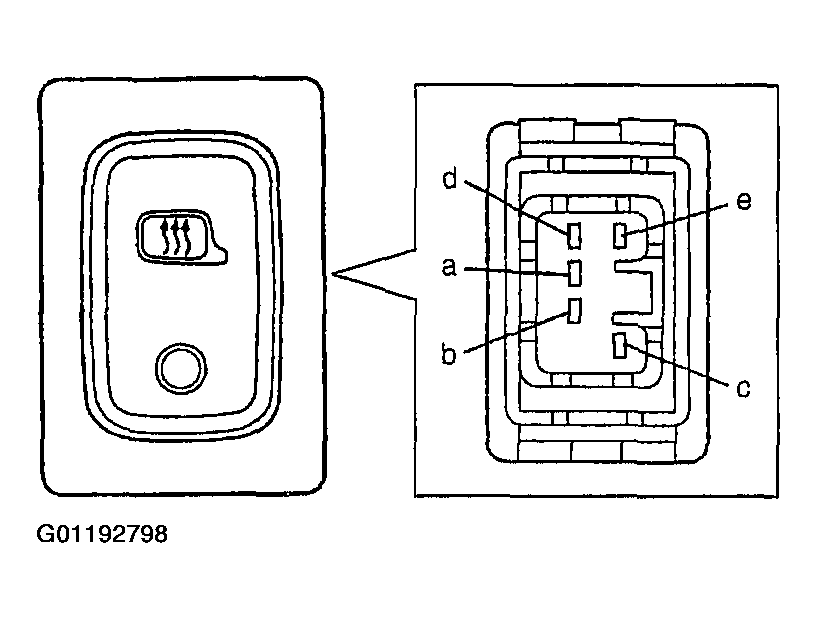

    Fig 2: Identifying Door Mirror Heater Switch Terminals
    G01192798Courtesy of SUZUKI OF AMERICA CORP.
