Trunk Lid Lock Assembly (For Sedan Model) Components

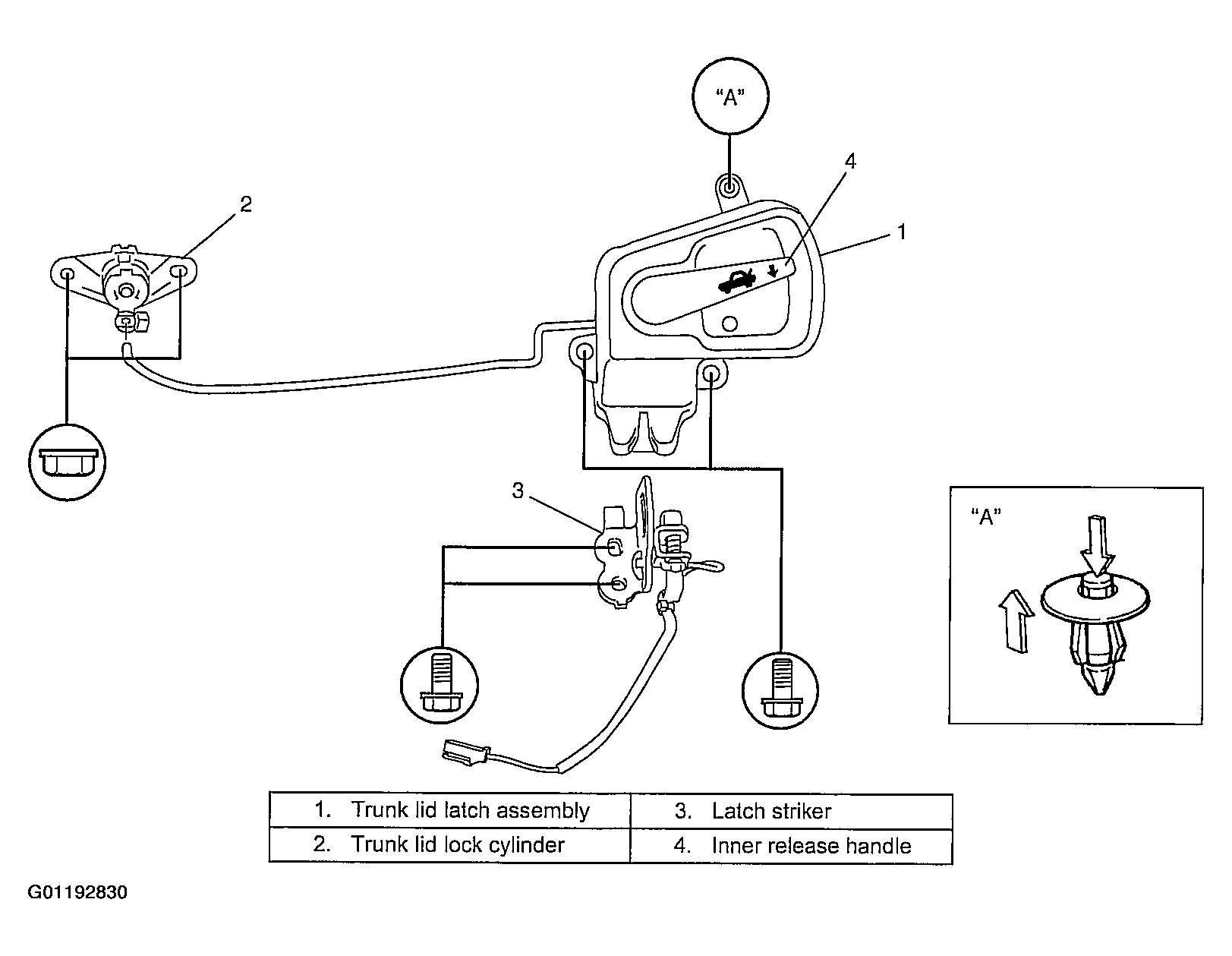

Fig 1: Identifying Trunk Lid Lock Assembly Components (Sedan)
G01192830Courtesy of SUZUKI OF AMERICA CORP.
