Headlight Diode Removal And Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove glove box from instrument panel.
  3. Remove headlight diode (1) from main harness (2) as shown in figure.

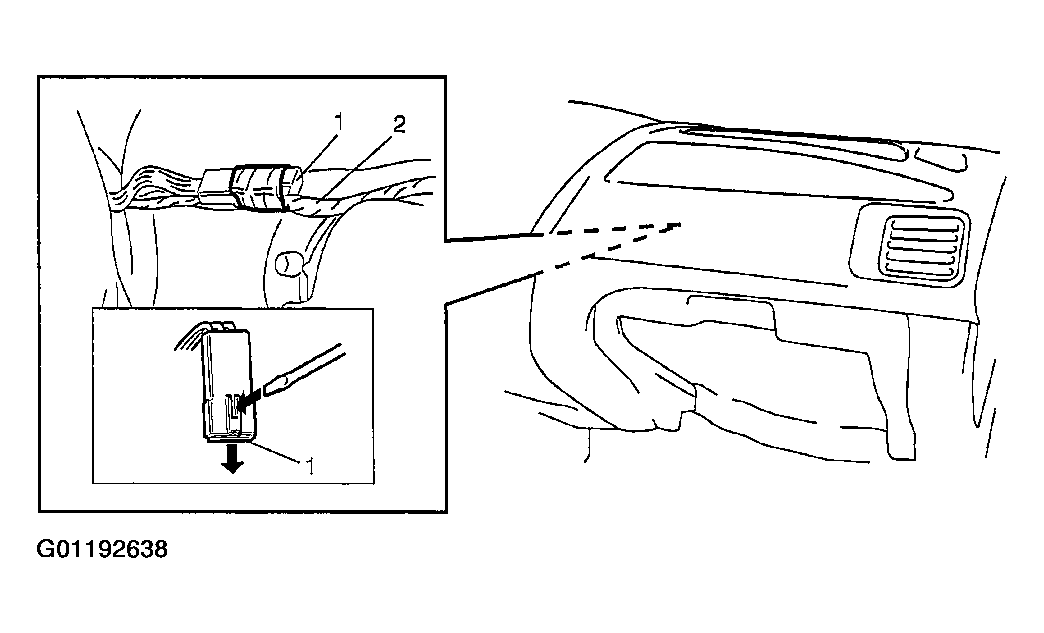

    Fig 1: Locating Headlight Diode
    G01192638Courtesy of SUZUKI OF AMERICA CORP.
