2WD Model

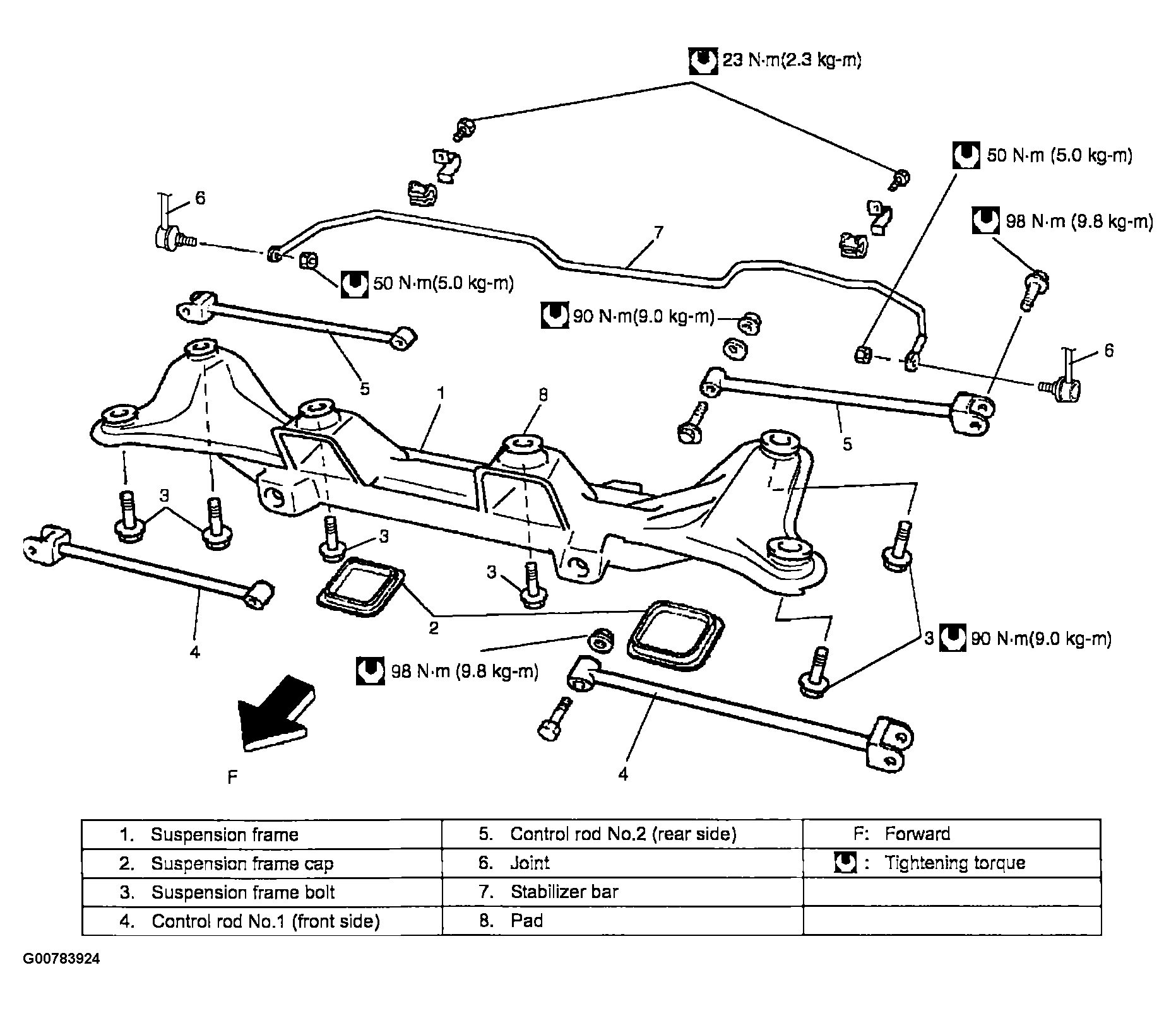

Fig 1: Identifying Rear Suspension Frame Components (2WD Model) (2004 model shown, 2002-03 similar)
G00783924Courtesy of SUZUKI OF AMERICA CORP.
