Checking Refrigerant Charge

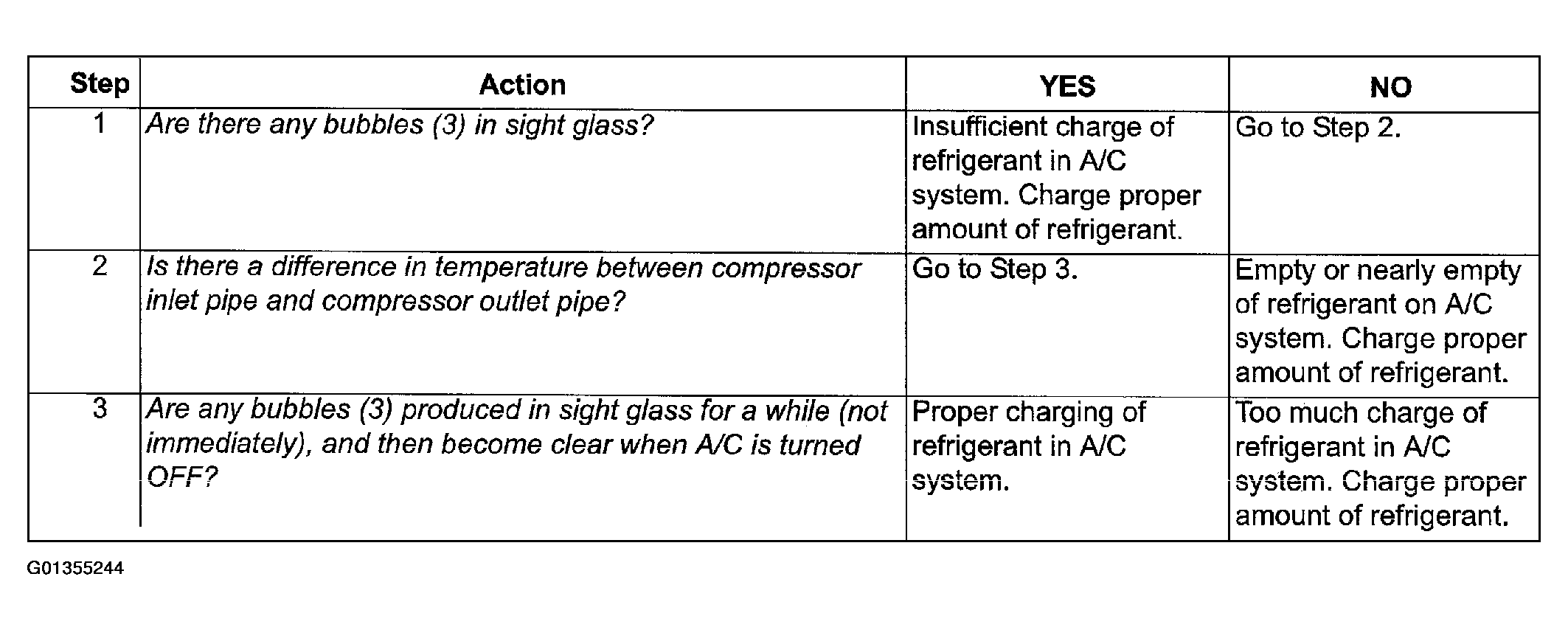

Fig 1: Identifying Refrigerant Charge Chart
G01355244Courtesy of SUZUKI OF AMERICA CORP.
NOTE: Charge proper amount of refrigerant referring to "OPERATION PROCEDURE FOR REFRIGERANT CHARGING :", if necessary.
Fig 2: Identifying Refrigerant Operating Procedure
G01355245Courtesy of SUZUKI OF AMERICA CORP.
