Compressor Removal and Installation: Removal
- Run engine at idle speed with air conditioning ON for 10 minutes. After that stop the engine.
- Disconnect negative (-) cable at battery.
- Recover refrigerant from refrigeration system by referring to "OPERATION PROCEDURE FOR REFRIGERANT CHARGING :".NOTE: The amount of removed compressor oil must be measured for replenishing compressor oil.
- Remove generator drive belt referring to "GENERATOR DRIVE BELT :".
- Disconnect discharge pipe from condenser.
- Remove condenser cooling fan referring to "CONDENSER COOLING FAN REMOVAL AND INSTALLATION :".
- Disconnect magnet clutch lead wire coupler.
- Disconnect HO2S connector from its bracket.
- Disconnect discharge pipe and suction pipe from compressor.NOTE: Cap open fitting immediately to keep moisture out of system.

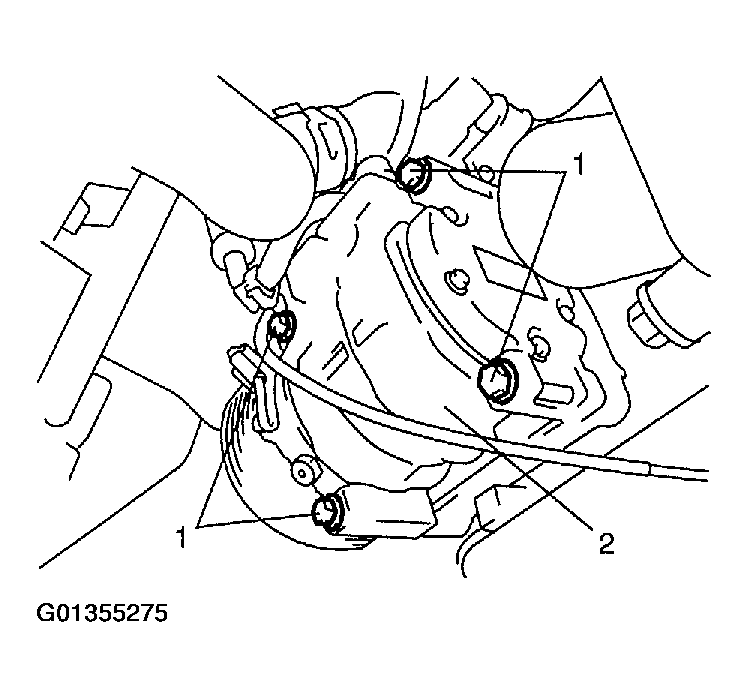

- Remove compressor mounting bolts (1), and then remove compressor (2) from its bracket.
