Intake Air Temperature (IAT) Sensor: Aerio

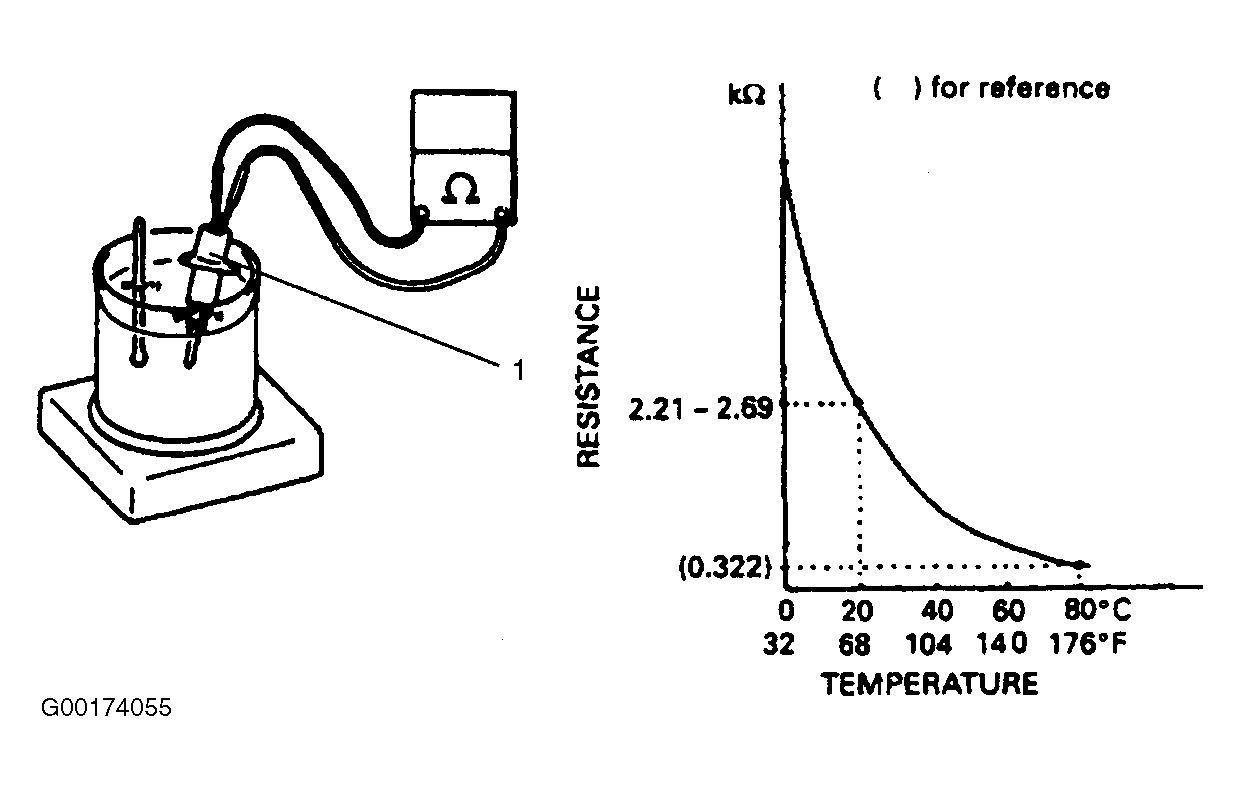

Measure resistance between IAT sensor terminals while it is immersed in a container of water. Heat water slowly and ensure resistance changes as specified. See IAT SENSOR RESISTANCE SPECIFICATIONS table. See Fig 1 . If resistance is not as specified, replace IAT sensor.
