Throttle Body Cleaning

Clean passages by blowing compressed air.

CAUTION:
  • IAC valve, TP sensor, or other components containing rubber must not be placed in a solvent or cleaner both. A chemical reaction will cause these parts to swell, harden or get distorted.
  • Don't put drills or wires into passages for cleaning. It causes damages in passages.

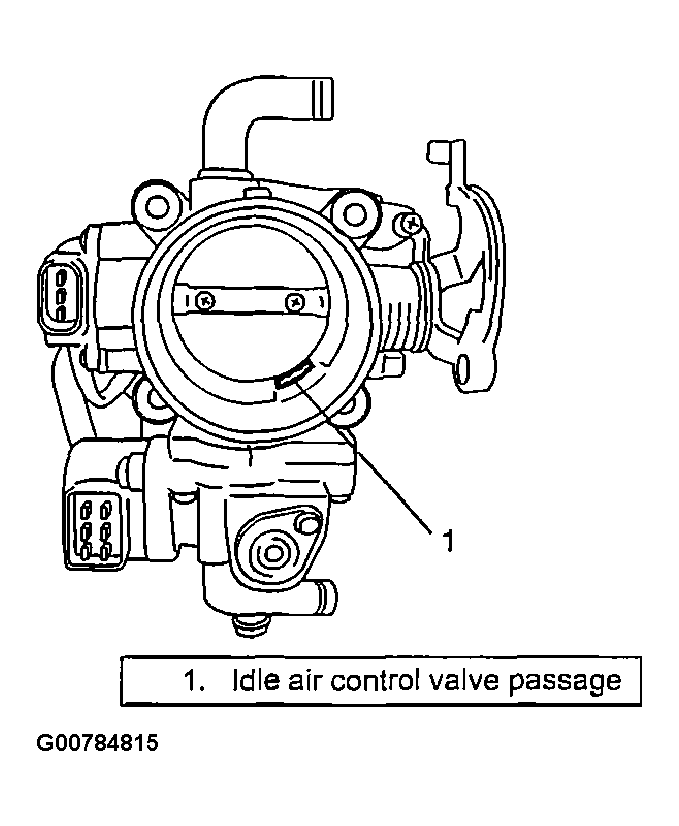

Fig 1: Cleaning Throttle Body
G00784815Courtesy of SUZUKI OF AMERICA CORP.
