Removal & Installation: Starter: Removal
- Disconnect negative battery lead at battery.

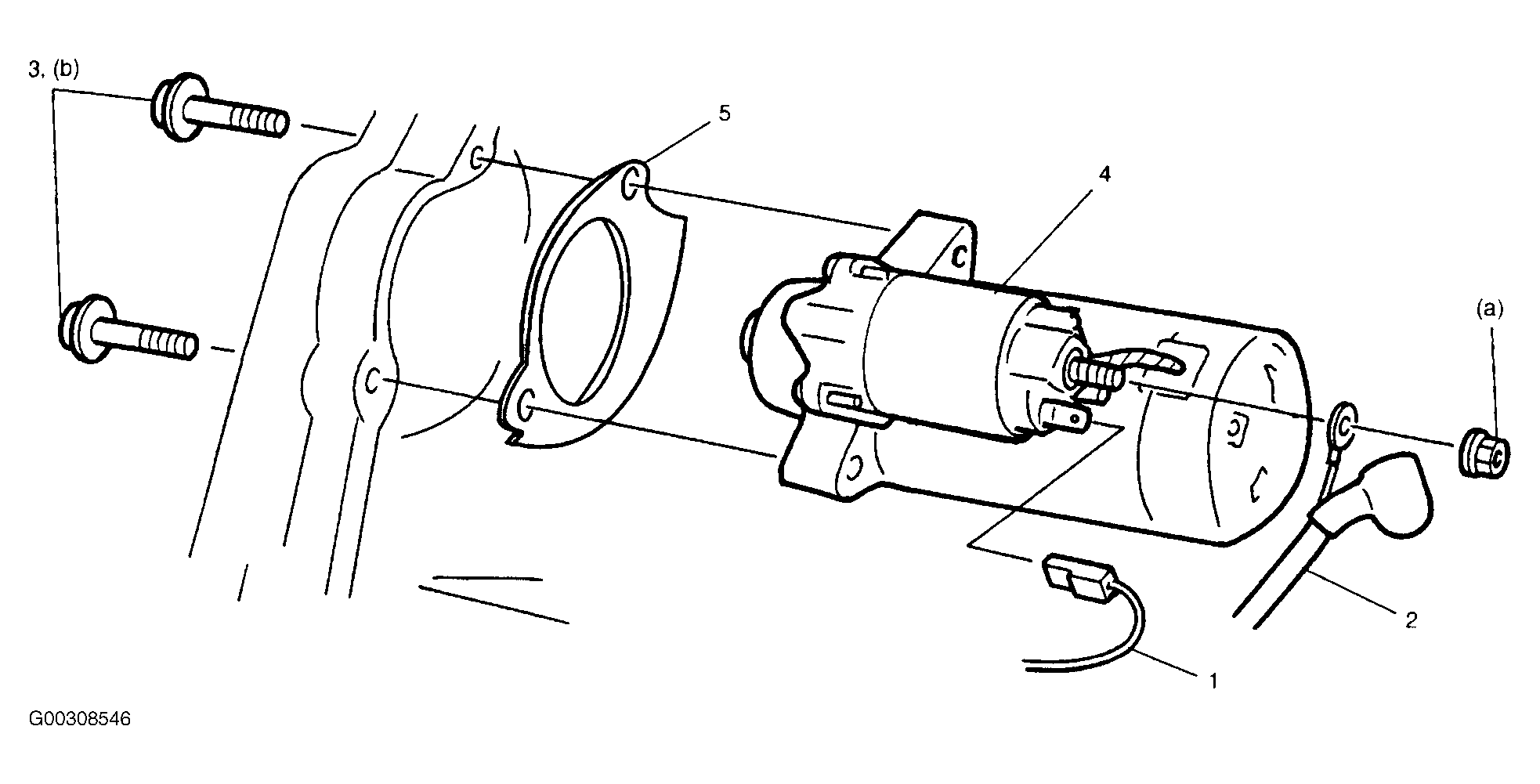

- Disconnect magnetic switch lead wire (1) and battery cable (2) from starting motor terminals. See Fig 1 .
- Remove starting motor mount bolts (3).
- Remove starting motor (4). Starting motor plate (5) should also come down.
