Cranking System Circuit Diagram

For cranking system circuit diagram, see Fig 1 .

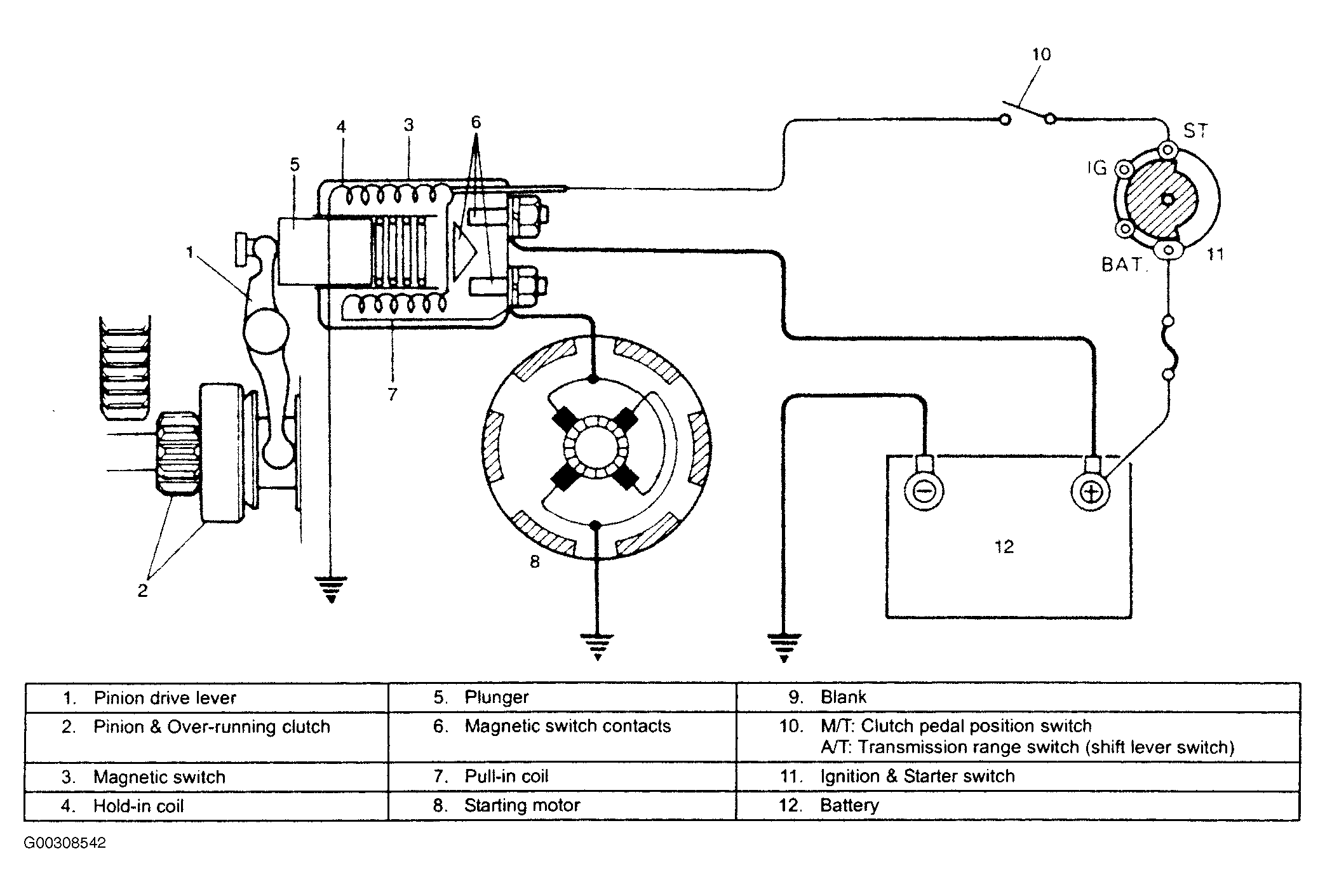

Fig 1: Identifying Cranking System Circuit Diagram
G00308542Courtesy of SUZUKI OF AMERICA CORP.
