Mil On DTC P2025 (TS_07_12065)
Publication date: 2005-12-06Reference number: TS_07_12065
MIL ON DTC P2025
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 07 12065, Date of Issue:
December 06, 2005
| SUZUKI: | 2003 AERIO (RH420) |
| SECTION: | Engine |
CONDITION
In extreme cold climates, the MIL may be ON when the engine is started. The DTC P2025 will be stored in the ECM.
CAUSE
ECM Software Logic
CORRECTION
Using the appropriate service manual, verify the DTC using the troubleshooting chart. If no cause for the DTC is found, reprogram the ECM by using the instructions listed below. Then clear the DTC from the ECM memory.
REQUIRED TOOLS AND SOFTWARE
REQUIRED TOOLS AND SOFTWARE DESCRIPTION
| Part Numbers | Description | QTY | Notes |
|---|---|---|---|
| 09910-06520 | SDS Tool Kit | 1 | Kit Includes USB Cable, Diagnostic Interface Box and DLC Cable |
| Suzuki Pitstop | Pass-Thru Reprogramming Software 3_SOFTWARE.EXE | 1 | Most current Pass-Thru Software Requires a Key Code to operate |
| Suzuki Pitstop | Database 4_DATABASE1.EXE | 1 | Most Current Software Database |
| Suzuki Pitstop | Suzuki Pass-Thru Reprogramming Tool Operator's Manual | 1 | Must be read and understood completely before attempting to reprogram a vehicle |
| 99963-01501-224 | Reprogram Label | 1 | Labels can be ordered Thru Suzuki Parts Department at no charge in packages of 200 each. |
WARRANTY CLAIM INFORMATION
WARRANTY CLAIM INFORMATION
| Labor Operation | Description | Failed Part Number | Complaint Code | Defect Code | Labor Time |
|---|---|---|---|---|---|
| FB32P0 | Controller, Fuel Injection | 33920-55GN3 | 01 | 48 | 0.3 Hrs. |
Reprogramming Procedure
- Log onto the Suzuki Pitstop.
- Download and review the Suzuki Pass-Thru Reprogramming Tool Operator's Manual. This must be read and understood COMPLETELY before attempting to reprogram the ECM.
- Following the procedure outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, download and install the Pass-Thru Reprogramming Software "3_SOFTWARE.EXE" if it is not already installed on your PC
- Download and unzip Suzuki Pass-Thru Reprogramming Data Base "4_DATABASE1.EXE" onto your PC. Follow the procedure in Section 3.2 of the Operator's Manual to update the Database files.
This step is only required to be done once to accommodate all vehicles covered under this TSB.
NOTE: This Database "4_DATABASE1.EXE" has been updated with newer data for reprogramming without changing the file name. You are requested to download in order to update the database in your PC. - Following the procedures outlined in the Suzuki Pass-Thru Reprogramming Tool Operator's Manual, hook up the SDS Interface Tool P/N 09910-06520 to the vehicle and run the ECM reprogramming software. Continue to step 6.

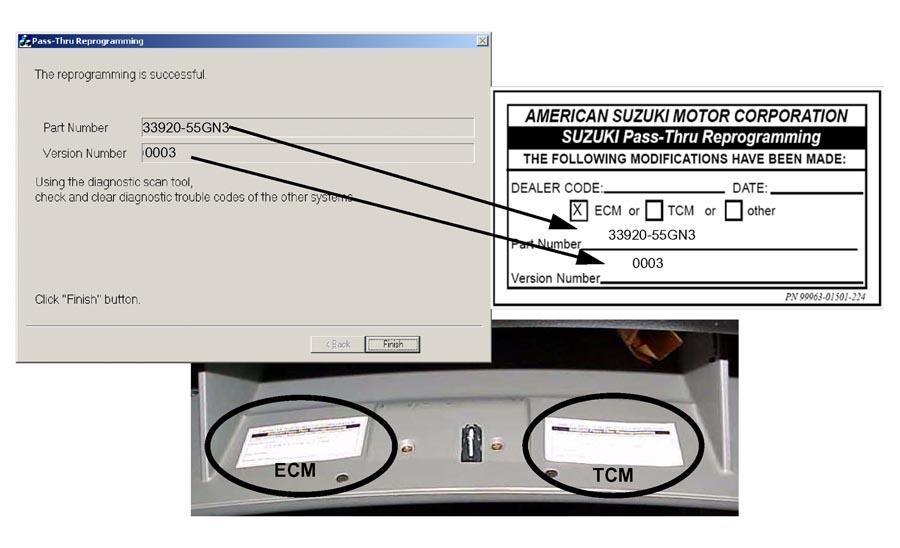

- Fill out the Reprogram Label P/N 99963-01501-224 (the part number and version will be displayed at the "The reprogramming is successful" screen). Then affix the label to the back of the glove box door as pictured below.
