Removal and Replacement

Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation

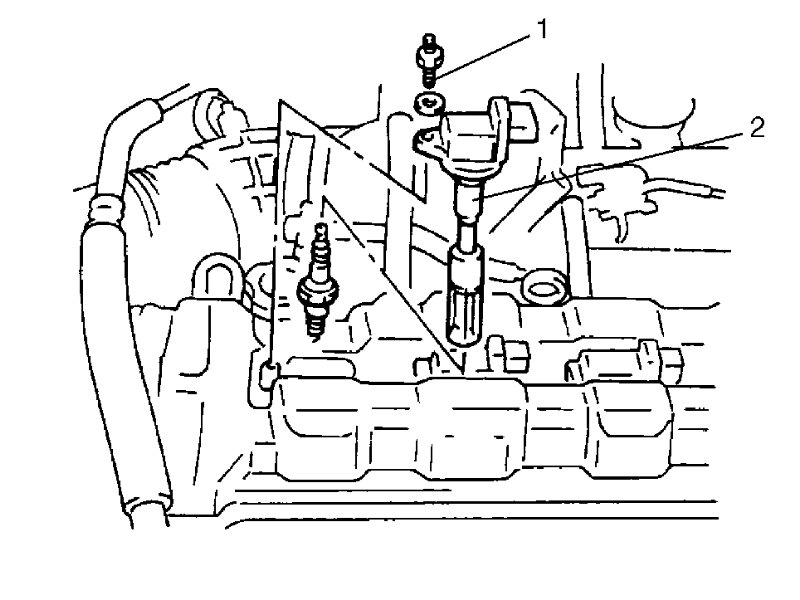

Removal

1) Disconnect ignition coil coupler.
2) Remove ignition coil bolt (1), and then pull out ignition coil (2).

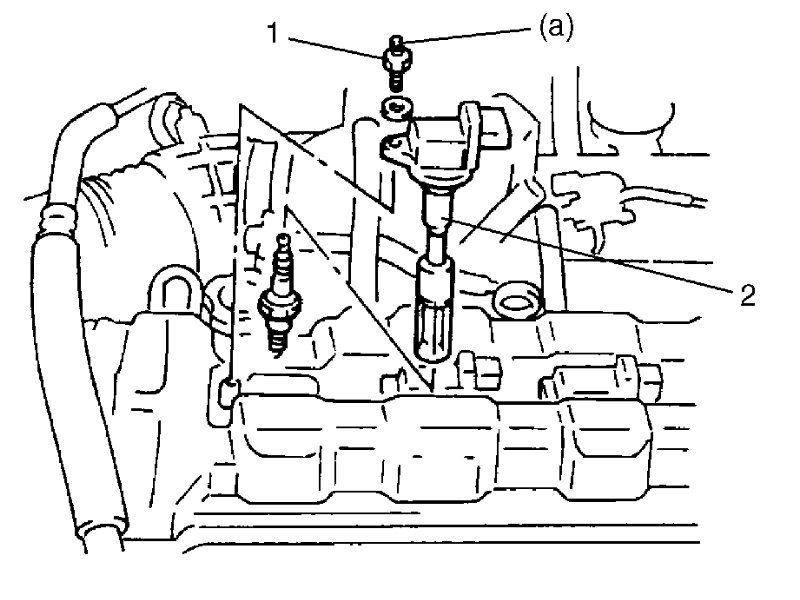

Installation

Ignition Coil Assembly (Igniter and Ignition Coil) Inspection
1) Install ignition coil (2) securely.
2) Tighten ignition coil bolt (1), and then connect ignition coil coupler.

Tightening torque
Ignition coil bolt (a): 3 Nm (0.3 kgf-m, 2.5 lbf-ft)
