EVAP Canister Inspection

EVAP Canister Removal and Installation

WARNING:

DO NOT SUCK nozzles on EVAP canister. Fuel vapor inside EVAP canister is harmful.

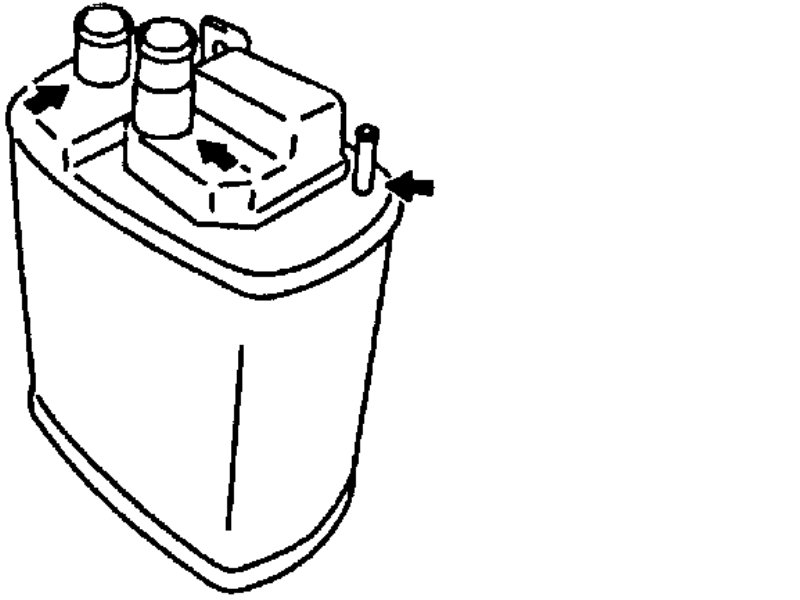

1) Check outside of EVAP canister visually.

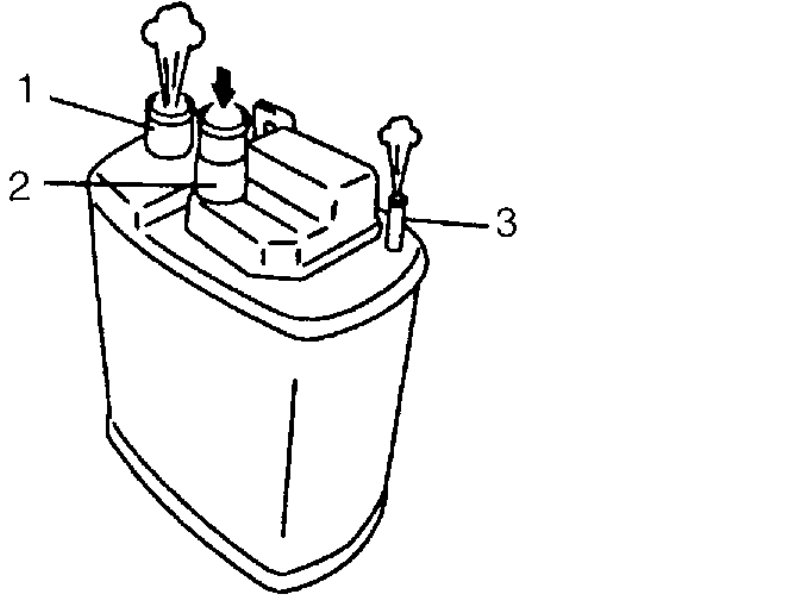

2) Blow low compressed air into "IN" port (2) and check that air flows through out of other ports ("PURGE" port (3) and "OUT" port (1)) without difficulty.

If any faulty condition is found in the inspection, replace.
