Air Cleaner Housing: Service and Repair

Air Cleaner Outlet Hose Removal and Installation

Removal

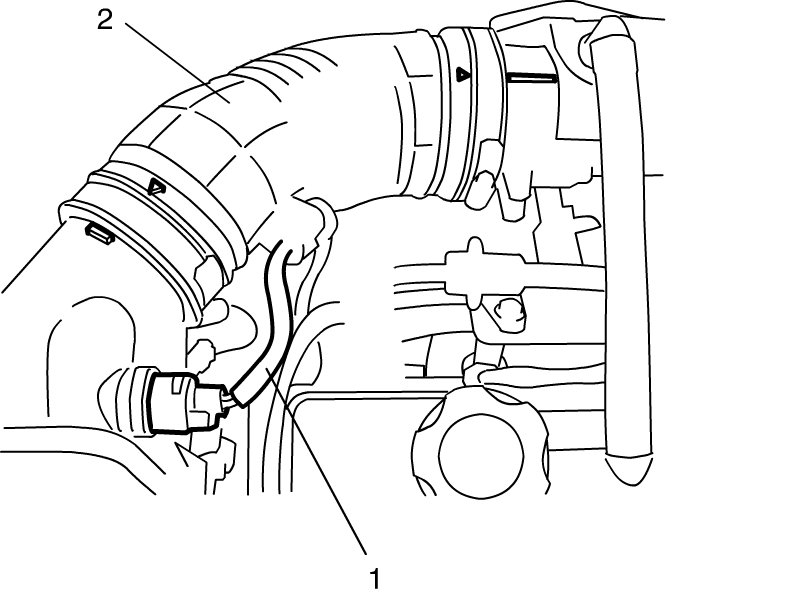

1) Disconnect IAT sensor wire (1).
2) Remove air cleaner outlet hose (2).





Installation

Reverse removal procedure for installation.

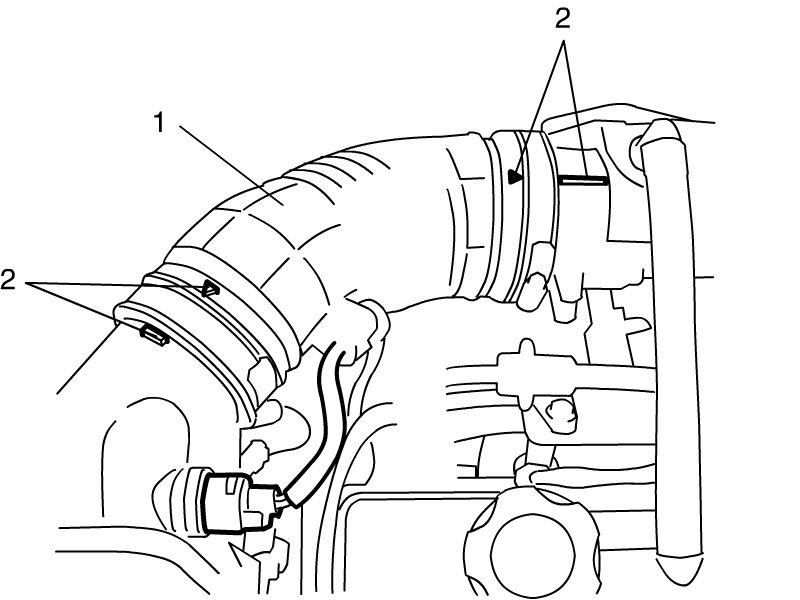

1) Install air cleaner outlet hose (1) by aligning match marks (2) as shown in figure.
