A-6 4 A/T Control System Circuit Diagram

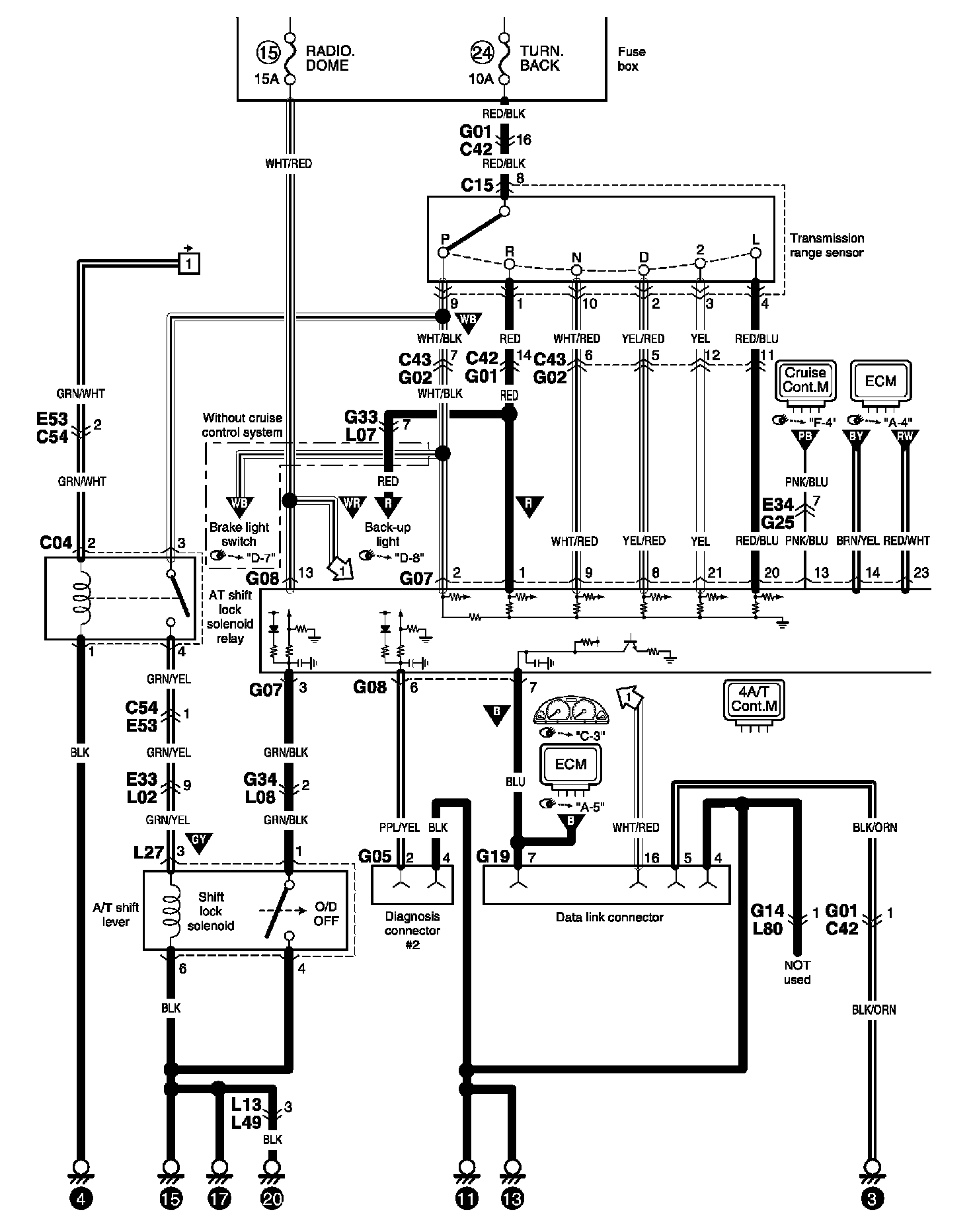

Part 1 Of 2:

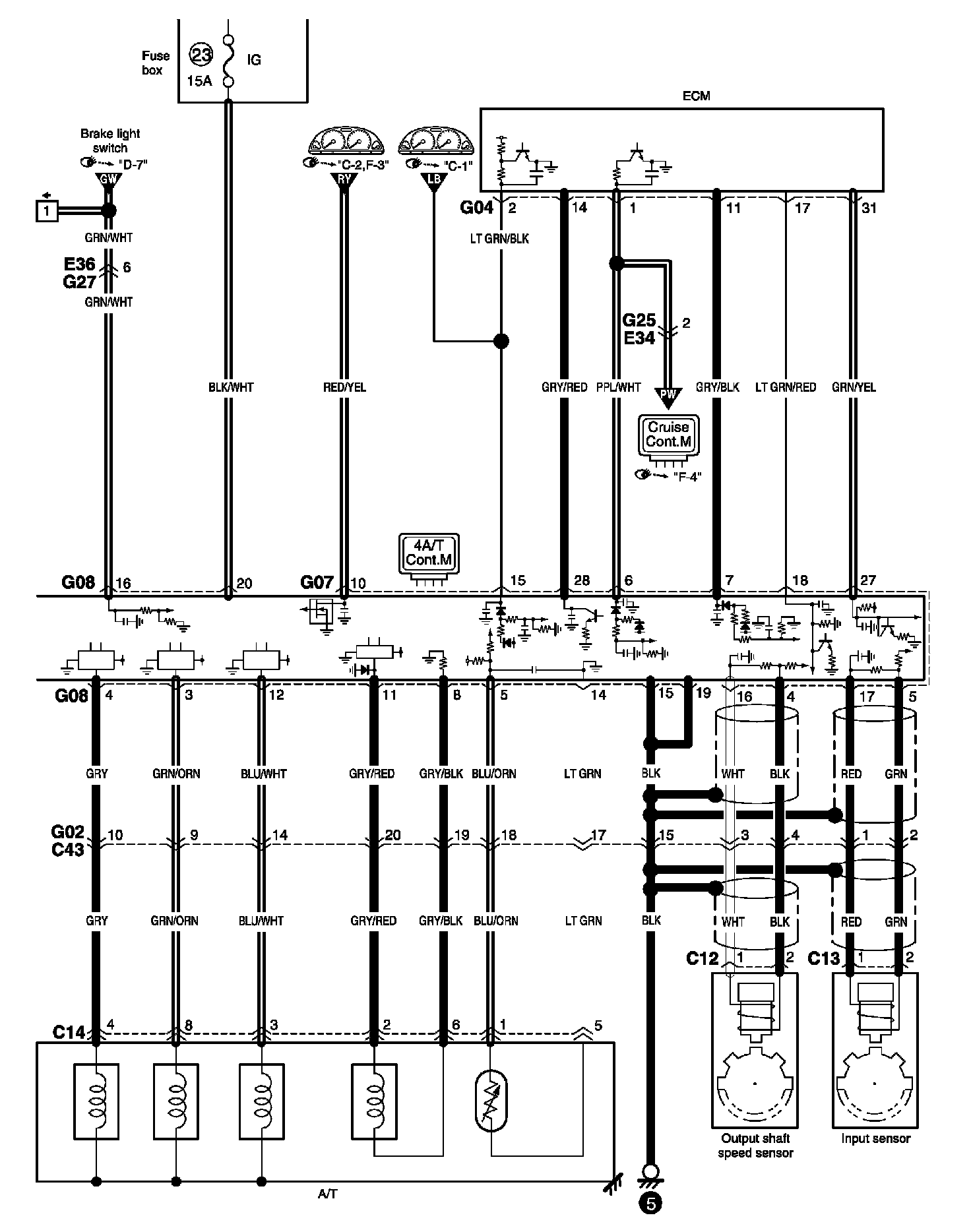

Part 2 Of 2:
A-6 4 A/T control system circuit diagram
