Oil Cooler Hoses: Installation

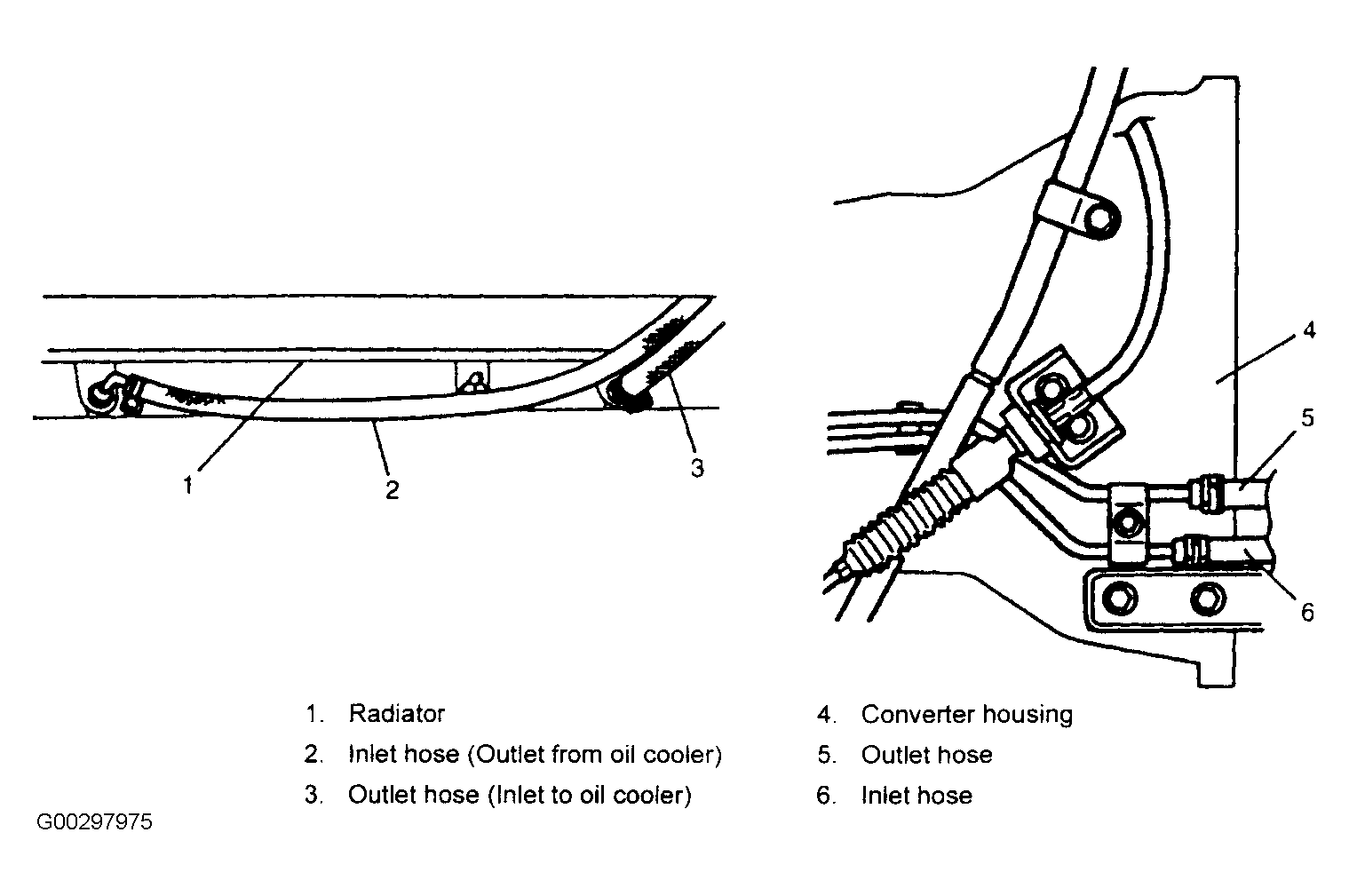

When replacing components, be sure to note the following: See Figure

• Replace clamps at the same time
• Insert hose as far as its limit mark
• Clamp hose securely

1. Use new union gasket "2" and connect oil cooler pipes "1" to oil outlet unions.
2. Connect hoses to pipes and clamp them securely.
3. Tighten union bolts to specified torque with oil outlet union locked. See TORQUE SPECIFICATIONS  .
4. Tighten pipe bolt "3" securely.
5. Check A/T fluid level. See CHECKING FLUID LEVEL  .
6. Check for fluid leakage after warming up A/T.
