Removal & Installation

  1. Lift the vehicle horizontally.
  2. Remove rear drive shaft from extension case, see appropriate DRIVE SHAFTS AND UNIVERSAL JOINTS article in DRIVELINE/AXLES
  3. Pry shroud, felt and oil seal with flat bladed tool.
  4. Be sure to apply grease to oil seal lip "1". Using appropriate seal driver and plastic hammer, press fit new oil seal "1", felt "2" and shroud "3" up to position. See Fig 1 .
  5. Install rear drive shaft.

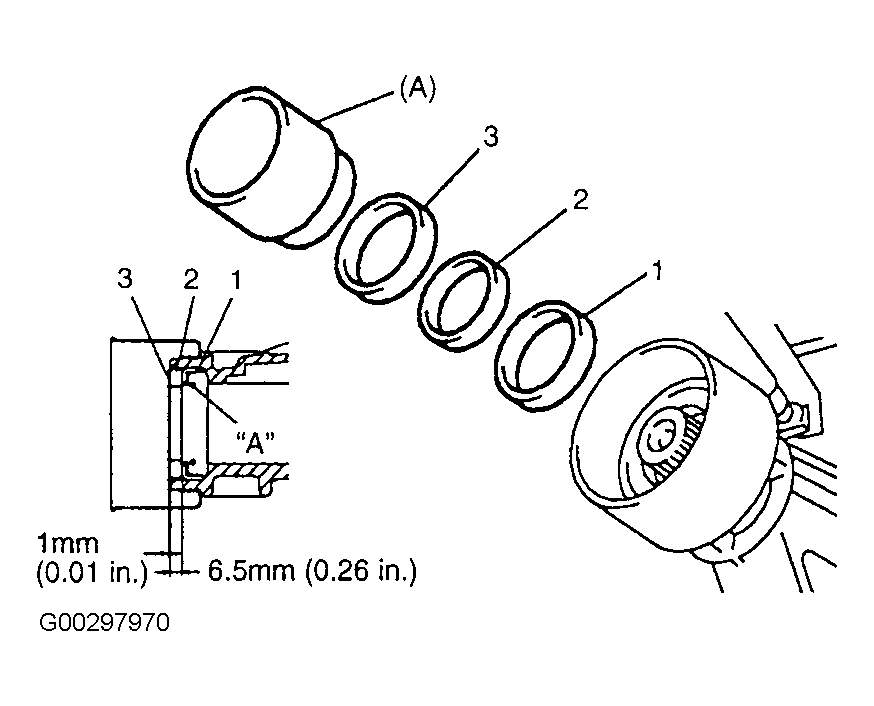

Fig 1: Removing & Installing Extension Case Oil Seal (2WD)
G00297970Courtesy of SUZUKI OF AMERICA CORP.
