LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Suzuki
>>
2002
>>
XL-7 Plus
>>
Repair and Diagnosis
>>
Suspension
>>
Wheel Alignment
>>
Specifications
>>
Specifications
>>
VITARA & Grand VITARA
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
VITARA & Grand VITARA

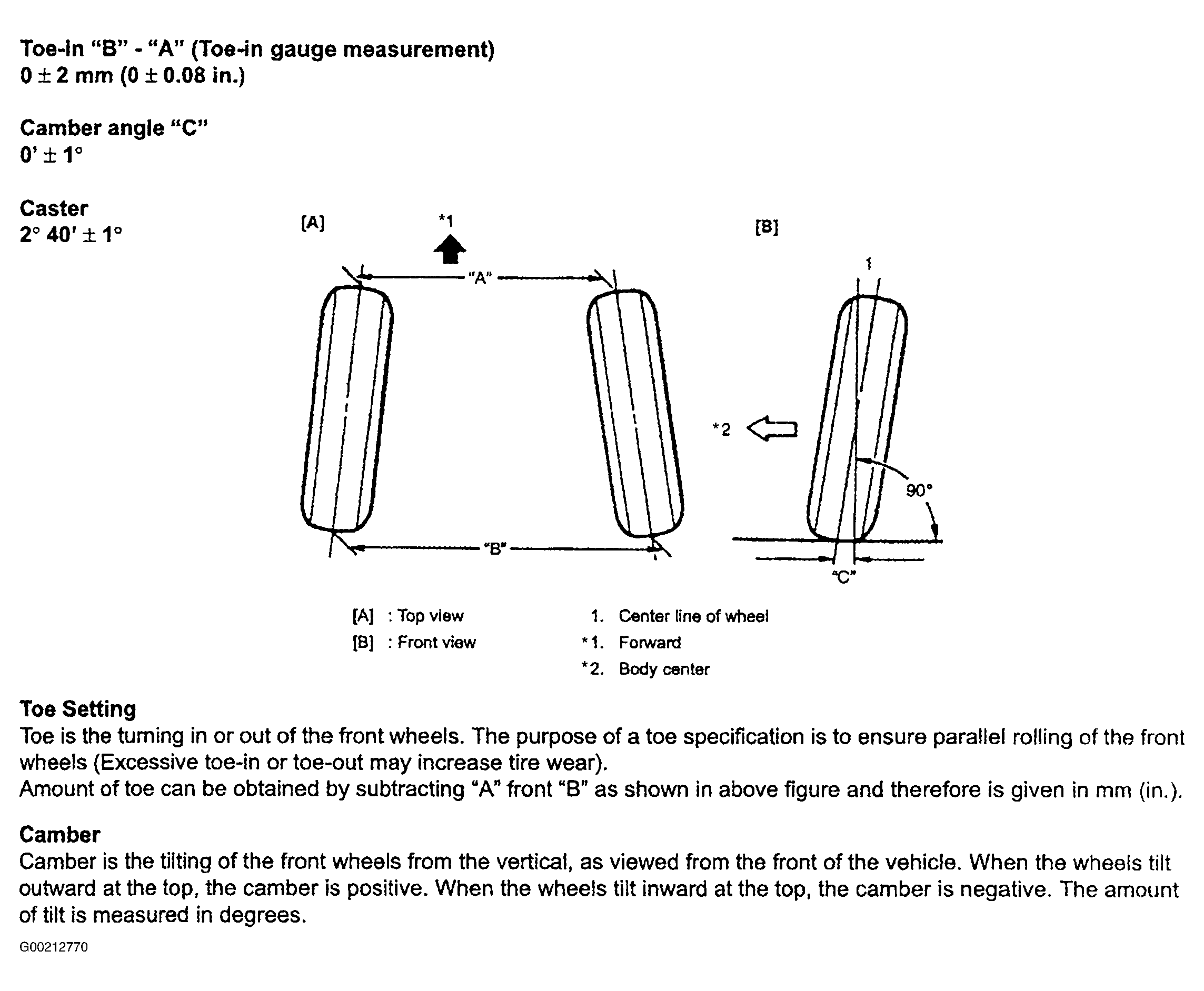

Fig 1: Wheel Alignment Specifications (Grand Vitara & Vitara)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
