Adjustable Steering Column Release Lever Inspection

Check to make sure of the following :

• Steering column (1) moves smoothly when adjustable steering column release lever is at lower position (2) (i.e., steering column is not locked).
• Steering column (1) is fixed securely when adjustable steering column release lever is at upper position (3) (i.e., steering column is locked).

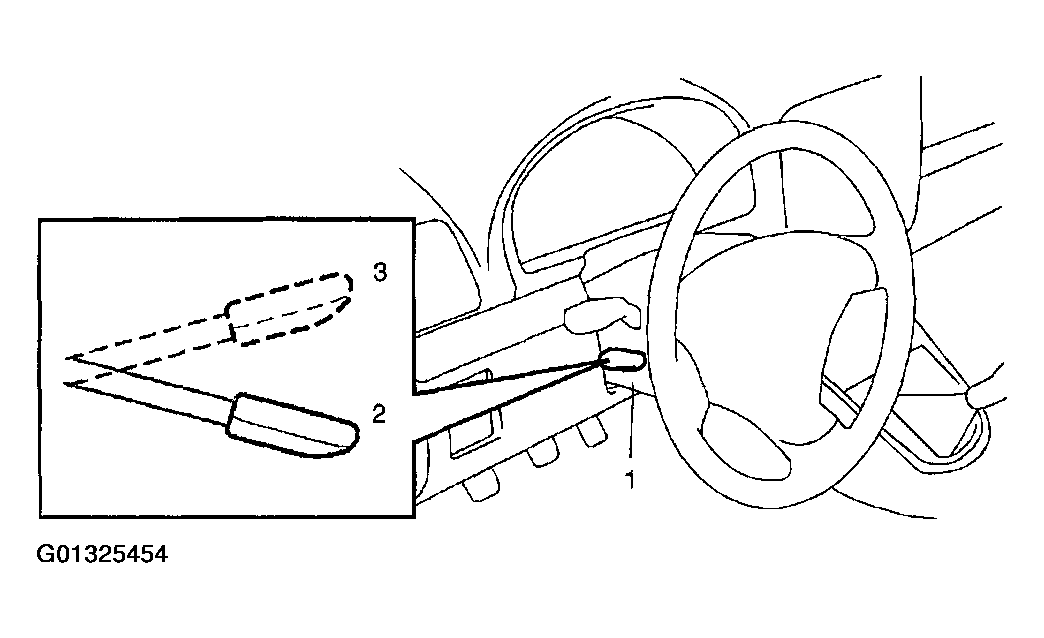

  Fig 1: Checking Adjustable Steering Column Operation

  Courtesy of SUZUKI OF AMERICA CORP.
