P/S Pump Drive Belt Inspection and Adjustment: Adjustment

To adjust P/S belt tension, loosen tension pulley bolts and turn tension pulley using hexagon wrench.
Adjust belt tension to specification described in CHECK. Then tighten tension pulley bolts to specified torque.
Tightening torque

P/S belt tension pulley bolt (a): 25 N.m (2.5 kg-m, 18.5 lb-ft)

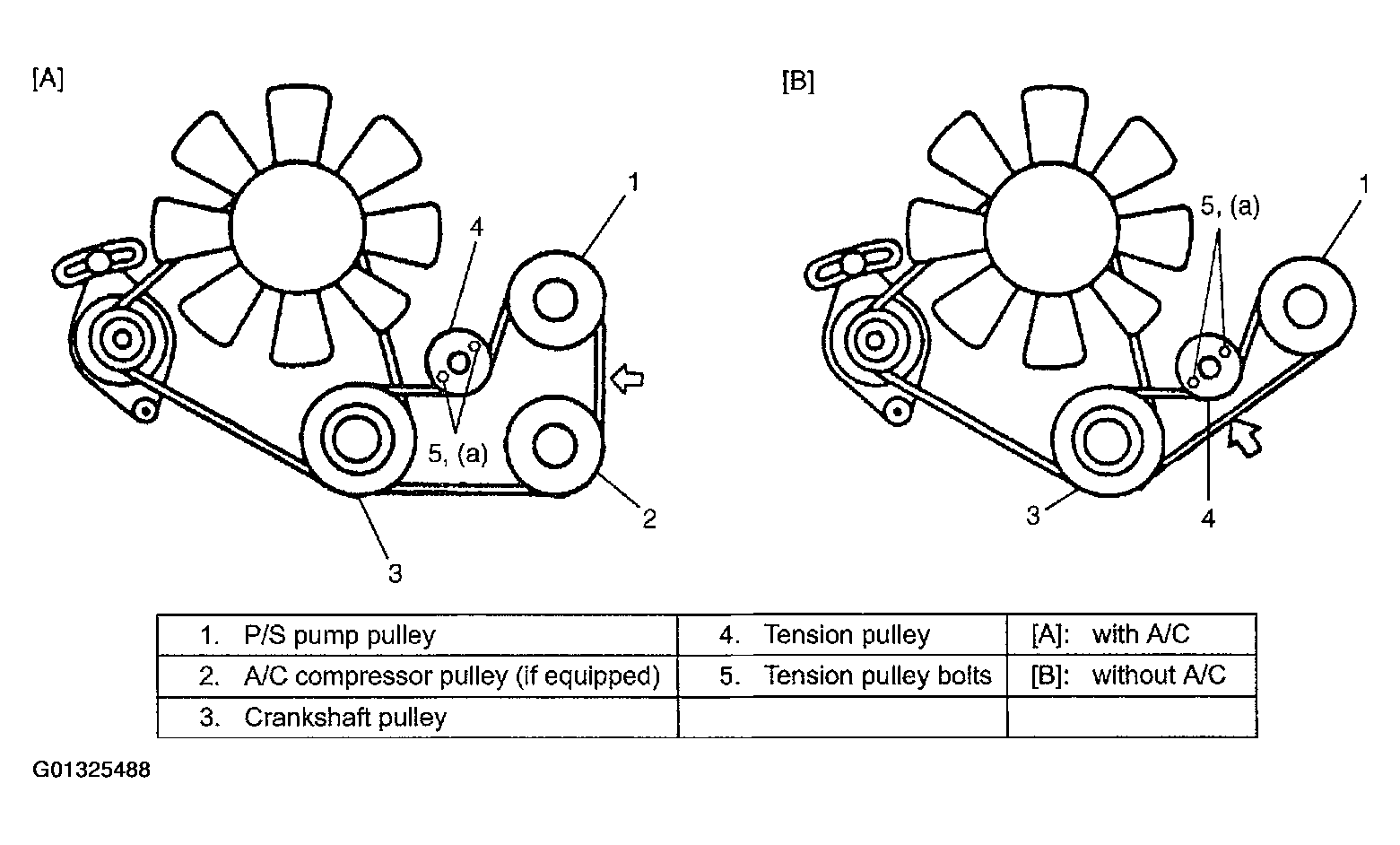

Fig 1: Adjusting P/S Belt Tension
Courtesy of SUZUKI OF AMERICA CORP.
