Intermittent Cooling

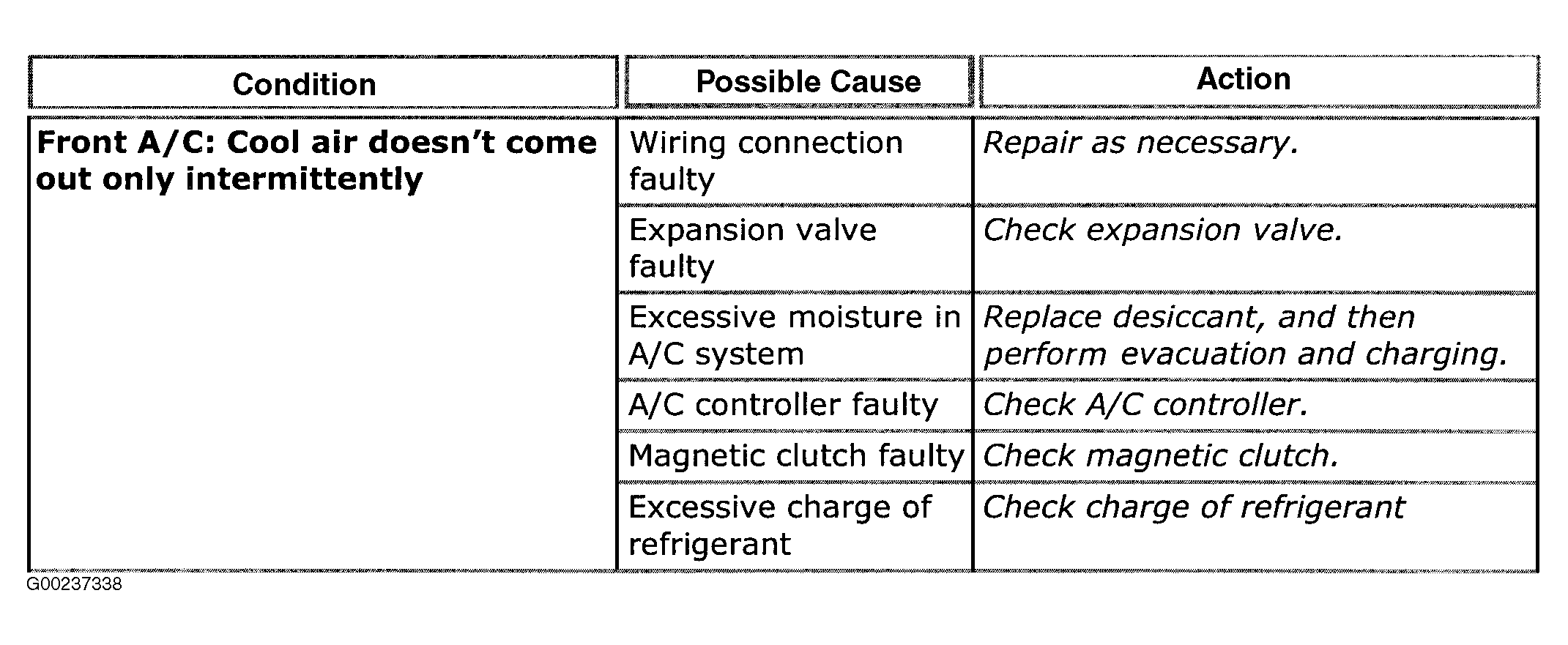

Fig 1: Intermittent Cooling
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
