Heater Blower Unit: Installation

  1. Reverse removal procedure for installation.
  2. Connect fresh air control cable and adjust. See ADJUSTMENTS .
  3. Enable air bag system.

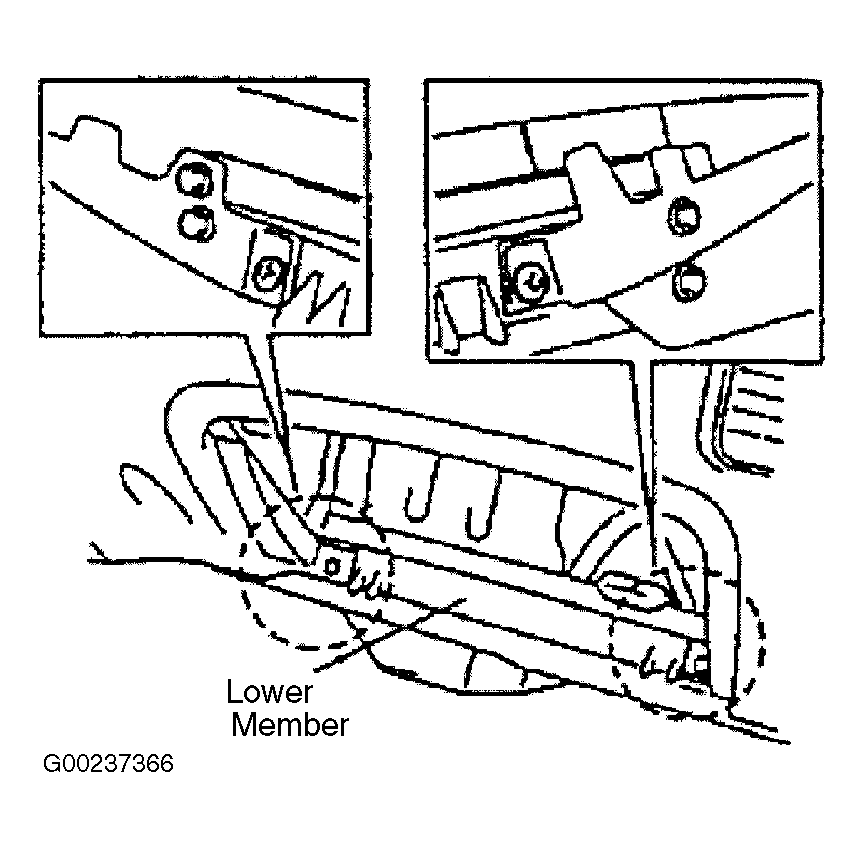

Fig 1: Removing & Installing Lower Crossmember Assembly
G00237366Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Removing & Installing ECM
G00237367Courtesy of SUZUKI OF AMERICA CORP.

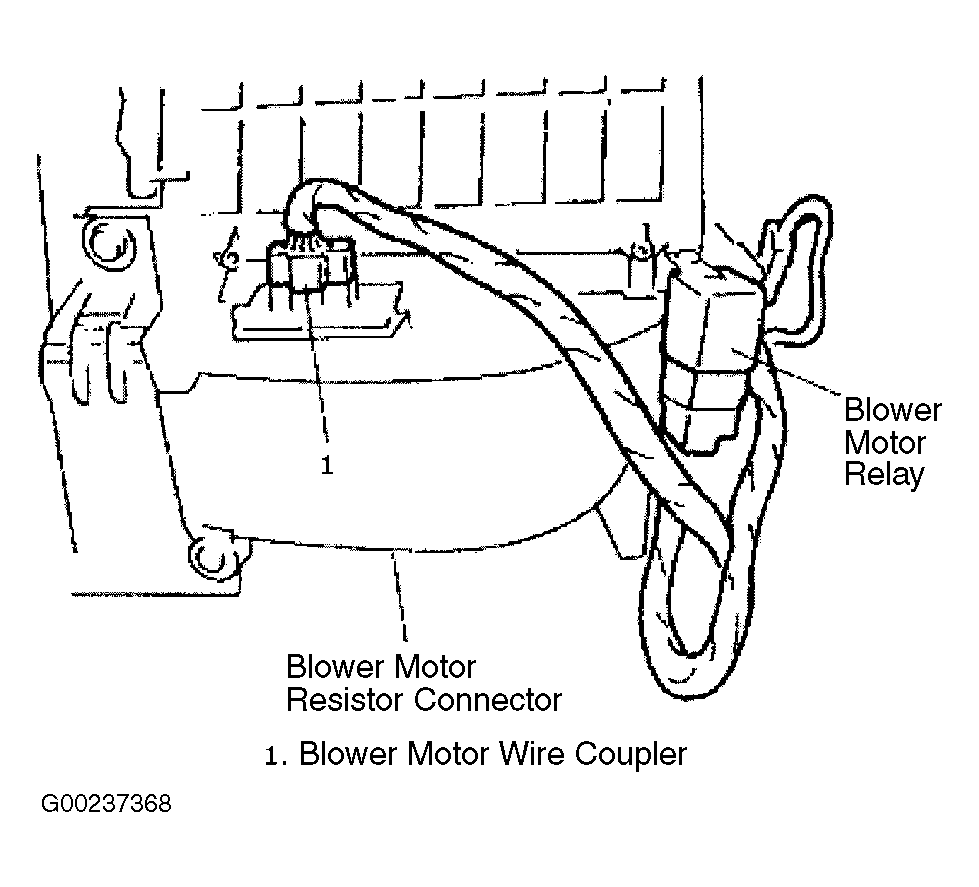

Fig 3: Identifying Blower Motor Wiring Connectors
G00237368Courtesy of SUZUKI OF AMERICA CORP.

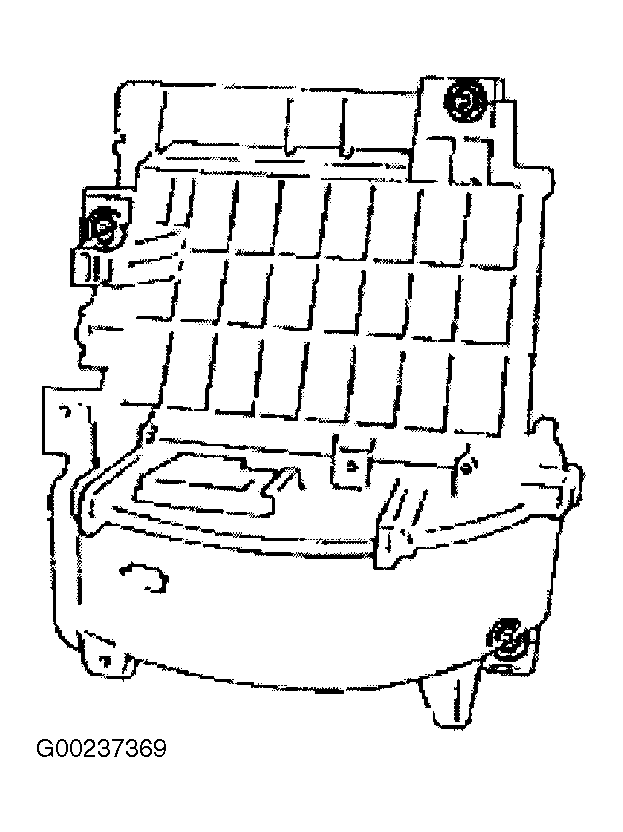

Fig 4: Identifying Blower Motor Unit Nuts
G00237369Courtesy of SUZUKI OF AMERICA CORP.
