Desiccant Bag: Installation

Reverse removal sequence to install desiccant bag.

NOTE:

When replacing desiccant, add 40 cc of refrigeration oil. See SPECIFICATIONS .
Do not remove desiccant from the plastic bag until just before inserting it into the receiver/dryer.
Install desiccant with its double-layer portion facing the bottom of the receiver/dryer. See Fig 3.
If desiccant cap is bolt type, tighten bolt to specified torque. See TORQUE SPECIFICATIONS .

Fig 1: Removing & Installing Filter From Receiver/Drier

Courtesy of SUZUKI OF AMERICA CORP.

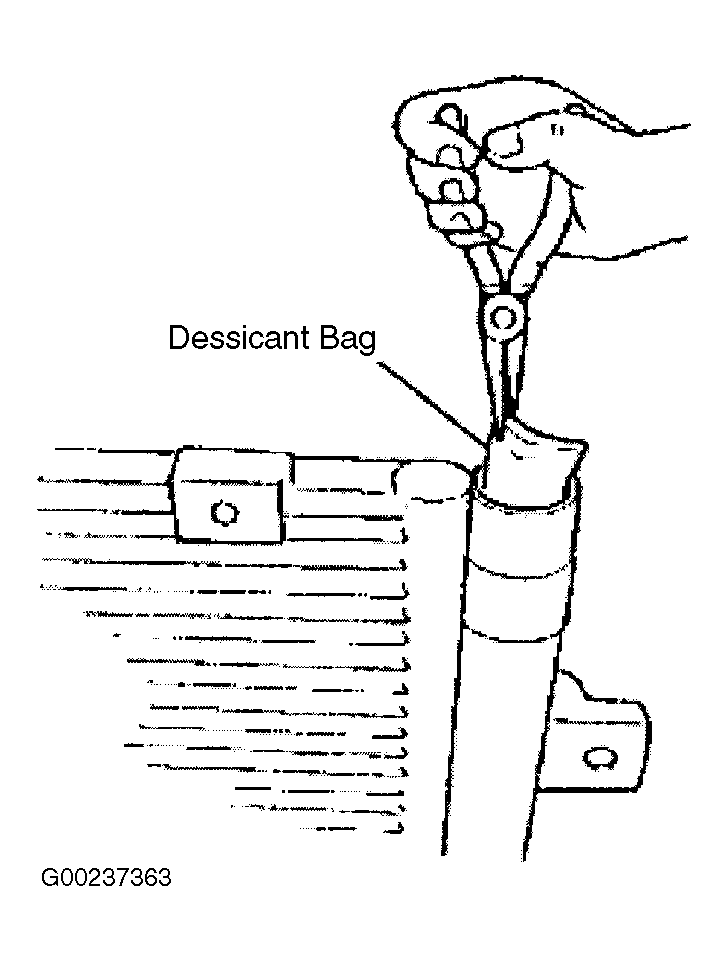

Fig 2: Removing Desiccant Bag

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Installing NEW Desiccant Bag

Courtesy of SUZUKI OF AMERICA CORP.
