Removal & Installation: Compressor: Removal

  1. Run engine at idle with A/C on for 10 minutes.
  2. Disconnect negative cable at battery.
  3. Recover refrigerant from refrigeration system using recovery and recycling equipment.
  4. Remove power steering pump. It is not necessary to drain power steering fluid.
  5. Disconnect magnet clutch connector.
  6. Disconnect suction hose and discharge hose from compressor. See Fig 1.
    NOTE: Cap open fitting immediately to keep moisture out of system.
  7. Remove compressor from its mount. See Fig 2.
    NOTE: If compressor assembly is replaced. Drain oil from compressor, and measure its amount. See Fig 3.

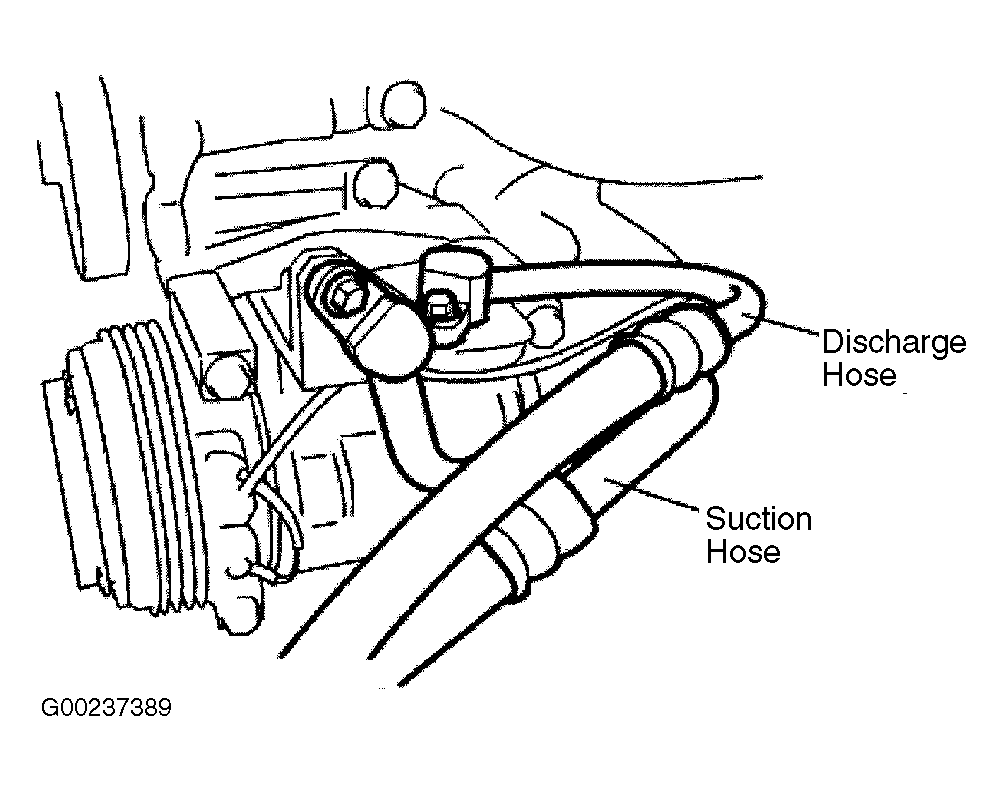

Fig 1: Locating Compressor Fittings
G00237389Courtesy of SUZUKI OF AMERICA CORP.

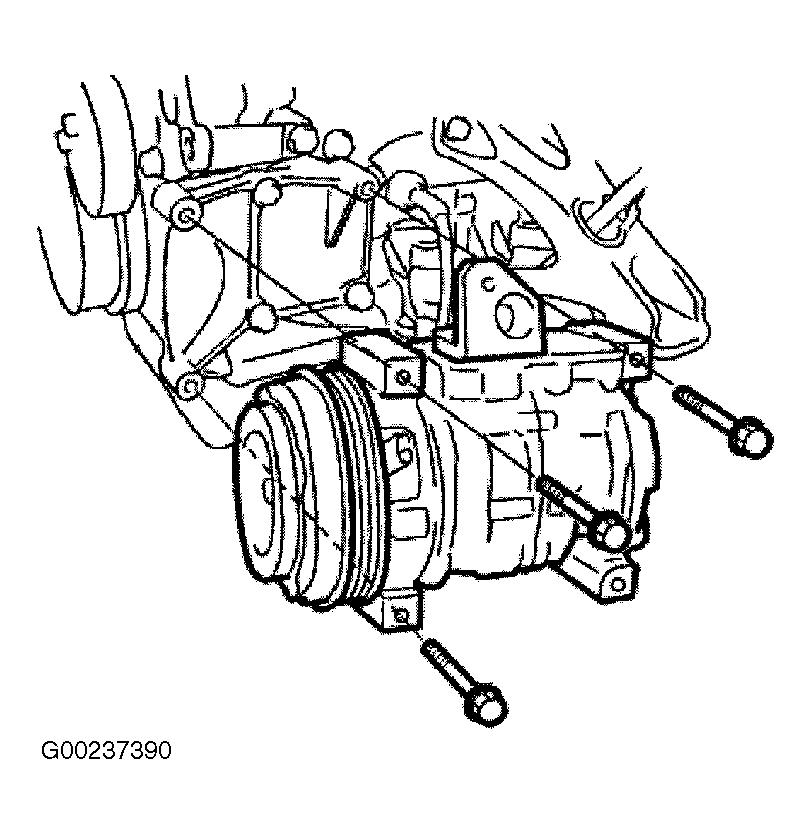

Fig 2: Removing & Installing Compressor
G00237390Courtesy of SUZUKI OF AMERICA CORP.

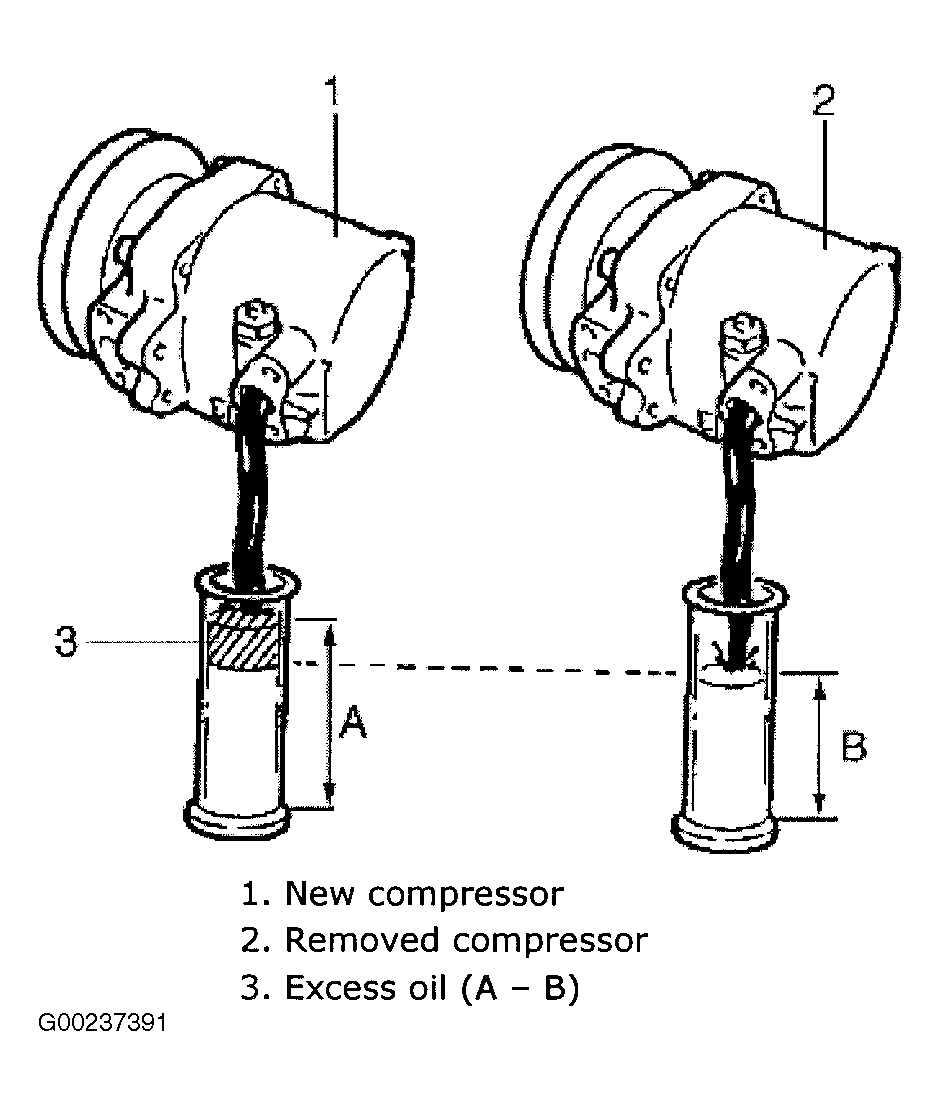

Fig 3: Measuring Compressor Oil
G00237391Courtesy of SUZUKI OF AMERICA CORP.
