Heater Mode Control Actuator

NOTE: For circuit reference, see CONNECTOR IDENTIFICATION  and/or WIRING DIAGRAMS  .

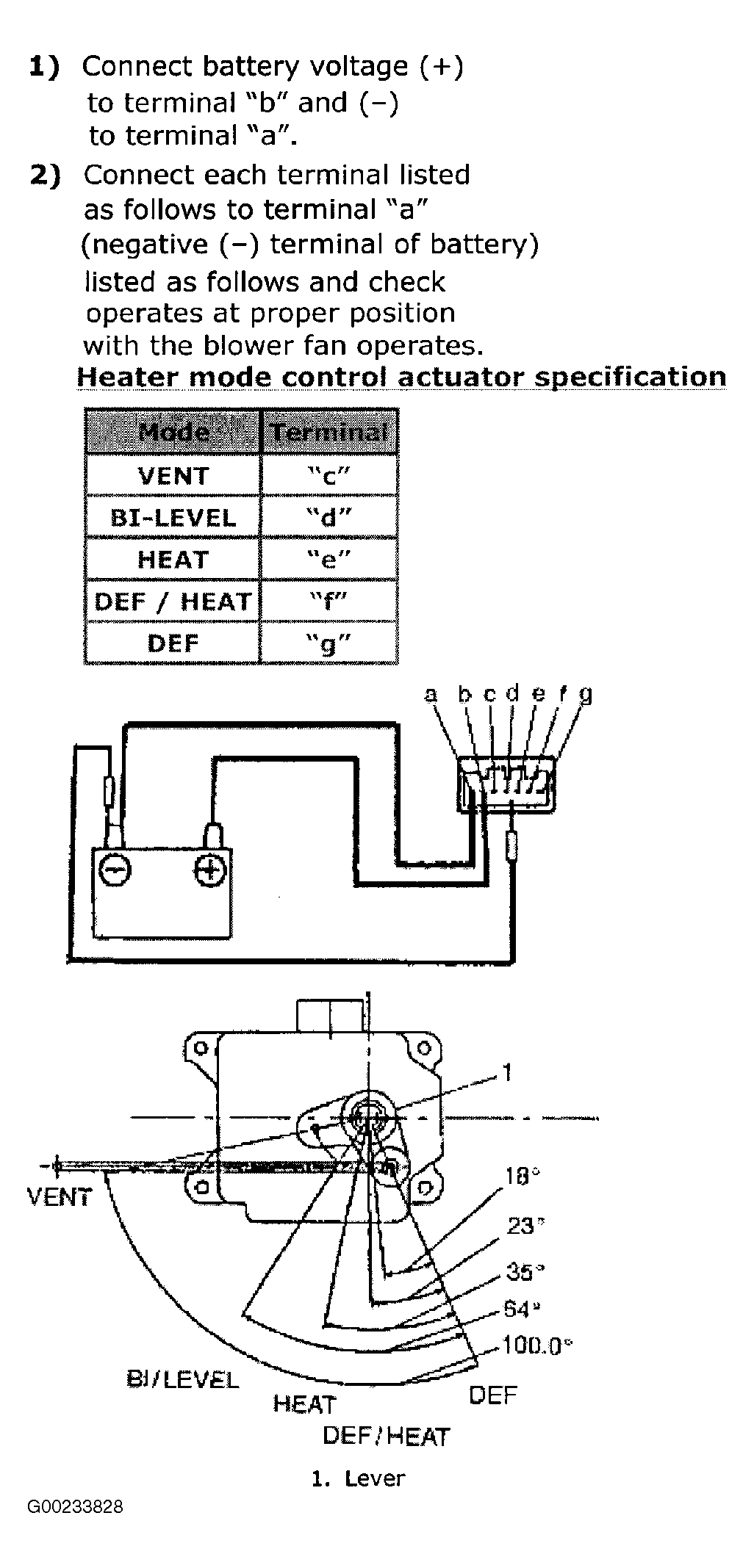

Fig 1: Testing Heater Mode Control Actuator
G00233828Courtesy of SUZUKI OF AMERICA CORP.
