Dual-Pressure Switch

NOTE: For circuit reference, see CONNECTOR IDENTIFICATION  and/or WIRING DIAGRAMS  .

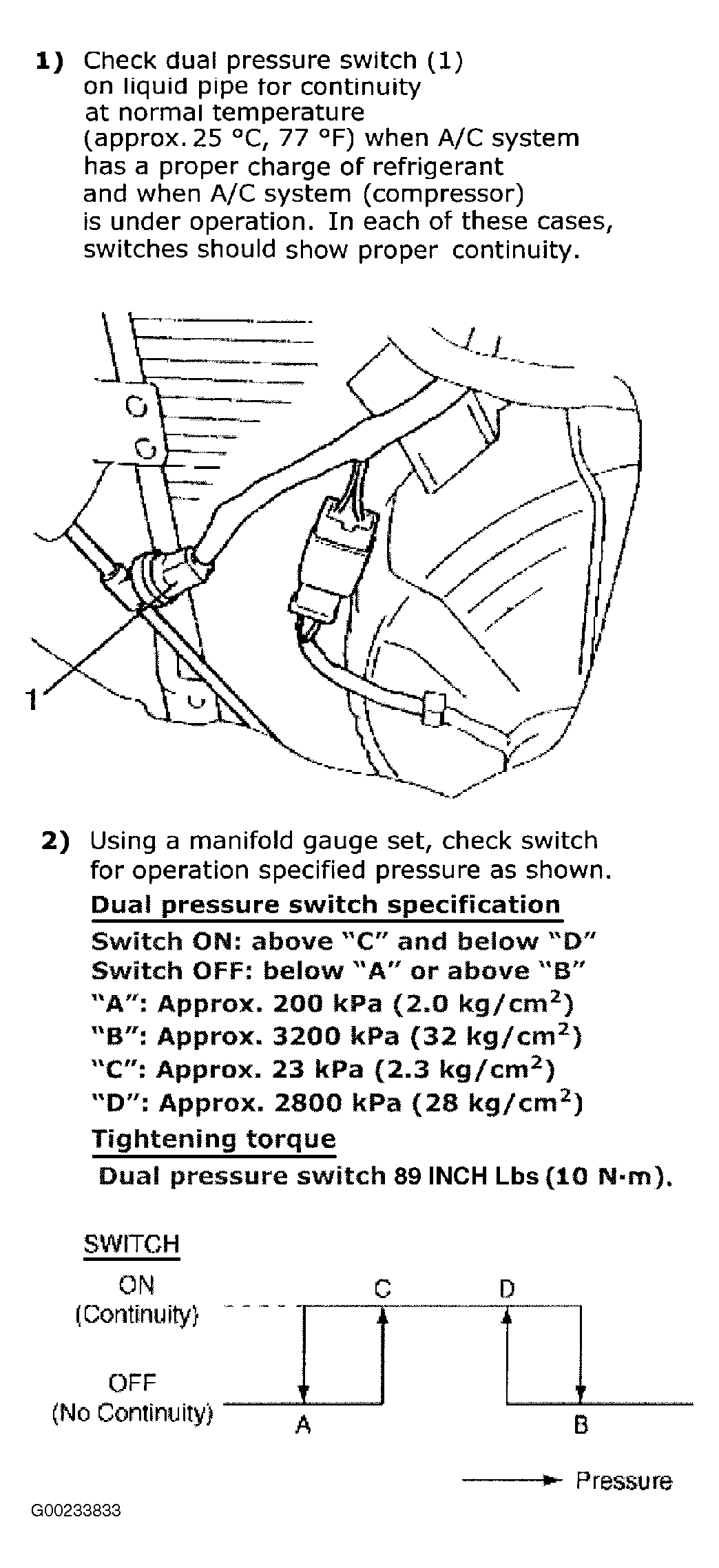

Fig 1: Testing Dual Pressure Switch
G00233833Courtesy of SUZUKI OF AMERICA CORP.
