Compressor & Condenser Fan Relays
NOTE:
For circuit reference, see CONNECTOR IDENTIFICATION and/or WIRING DIAGRAMS
.
- Disconnect negative cable at battery.

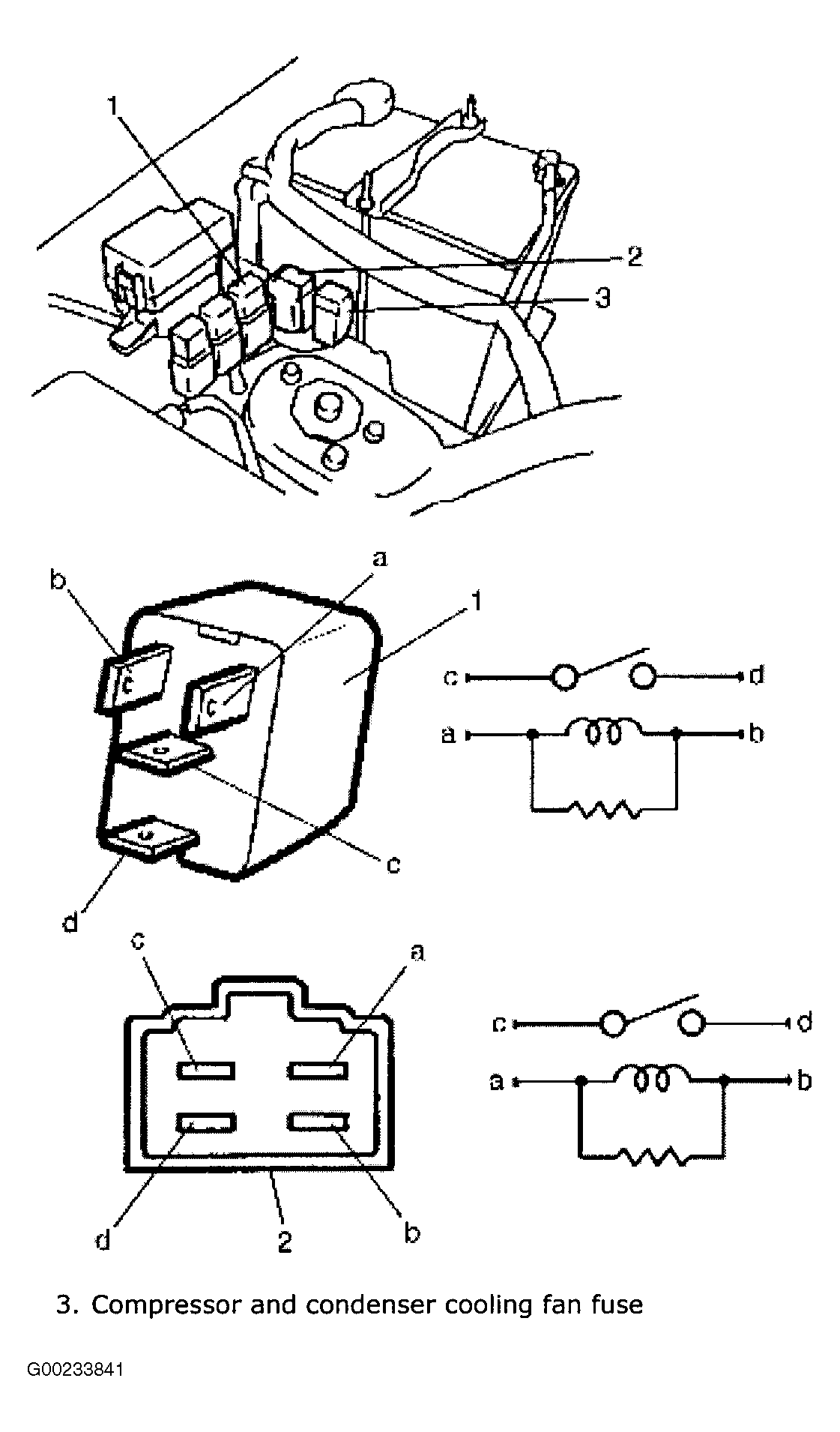

- Remove A/C condenser fan motor relay and/or compressor relay from vehicle.
- Check that there is no continuity between terminal "C" and "D". If there is continuity, replace relay.
- Connect battery positive terminal to terminal "B" of relay. Connect battery negative terminal to terminal "A" of relay. Check continuity between terminal "C" and "D". If there is no continuity when relay is connected to the battery, replace relay.
