Blower Motor Switch (Rear)
NOTE:
For circuit reference, see CONNECTOR IDENTIFICATION and/or WIRING DIAGRAMS
.

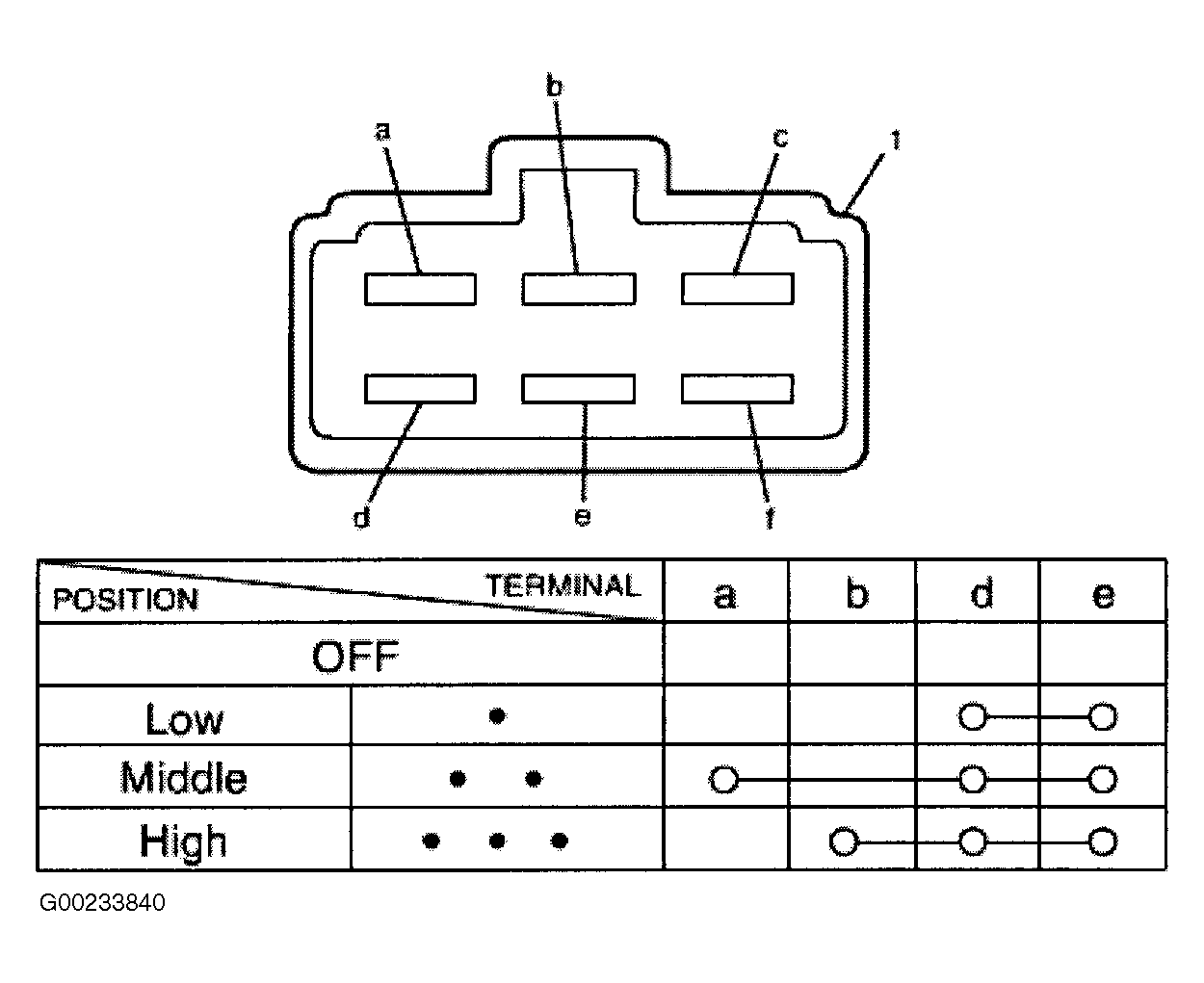

- Check rear blower motor switch for each terminal-to-terminal continuity. If check results are not as specified, replace rear blower motor switch.
- Check for the rear blower motor switch bulb to come on when terminal "C" is connected to battery positive voltage, and terminal "F" is connected to ground at the switch connector. If rear blower motor switch bulb does not illuminate, replace the switch.
