Blower Motor Resistor (Front)

NOTE: For circuit reference, see CONNECTOR IDENTIFICATION  and/or WIRING DIAGRAMS  .

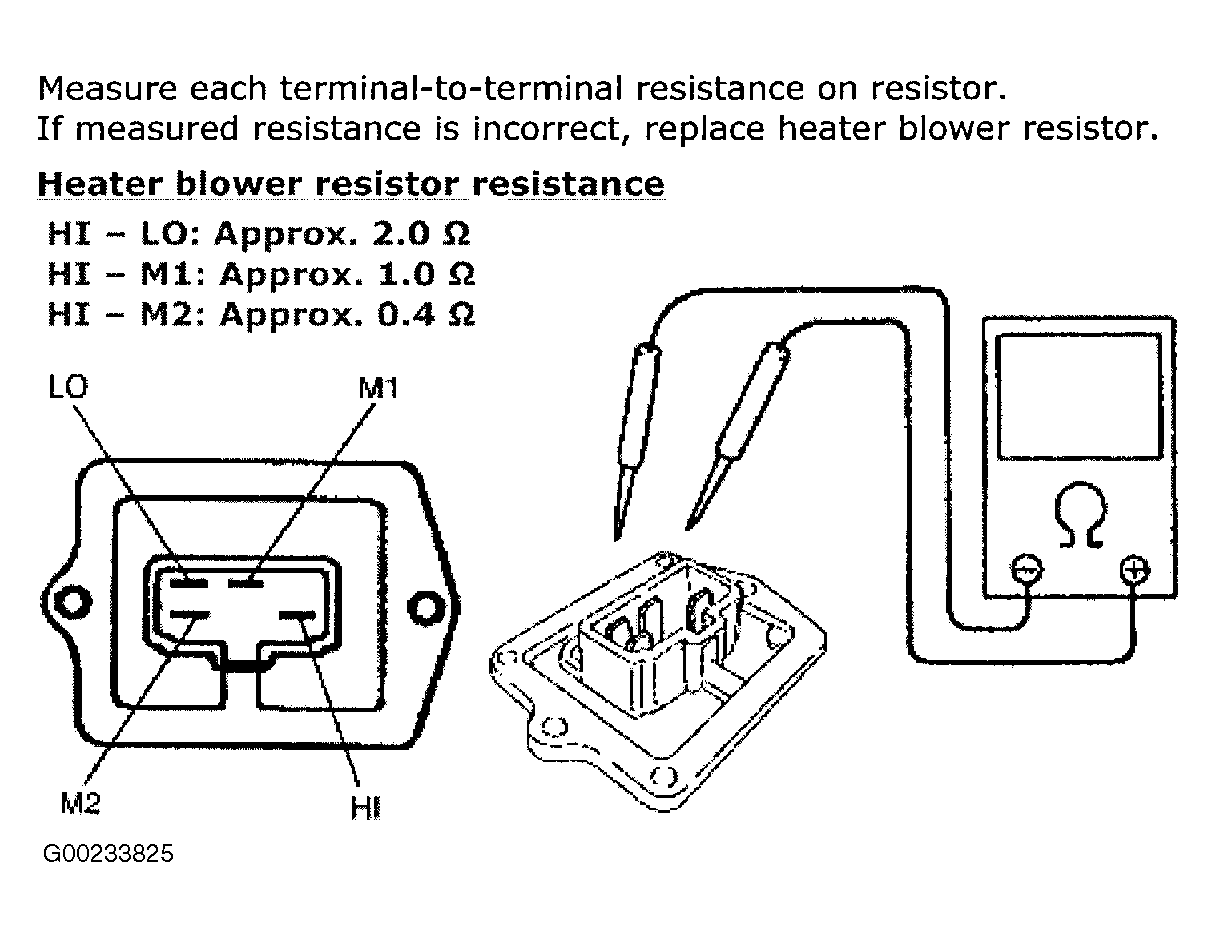

Fig 1: Testing Blower Motor Resistor
G00233825Courtesy of SUZUKI OF AMERICA CORP.
