Blower Motor Relay (Rear)

NOTE: For circuit reference, see CONNECTOR IDENTIFICATION  and/or WIRING DIAGRAMS  .
  1. Disconnect negative battery cable.
  2. Remove rear blower motor relay and/or solenoid valve relay from vehicle. See Fig 1.
  3. Check that there is no continuity between terminal "C" and "D". If there is continuity, replace relay.
  4. Connect battery positive terminal to terminal "A" of relay. See Fig 1.
  5. Connect battery negative terminal "B" of relay. See Fig 1.
  6. Check continuity between terminal "C" and "D". If there is no continuity when relay is connected to the battery, replace relay.

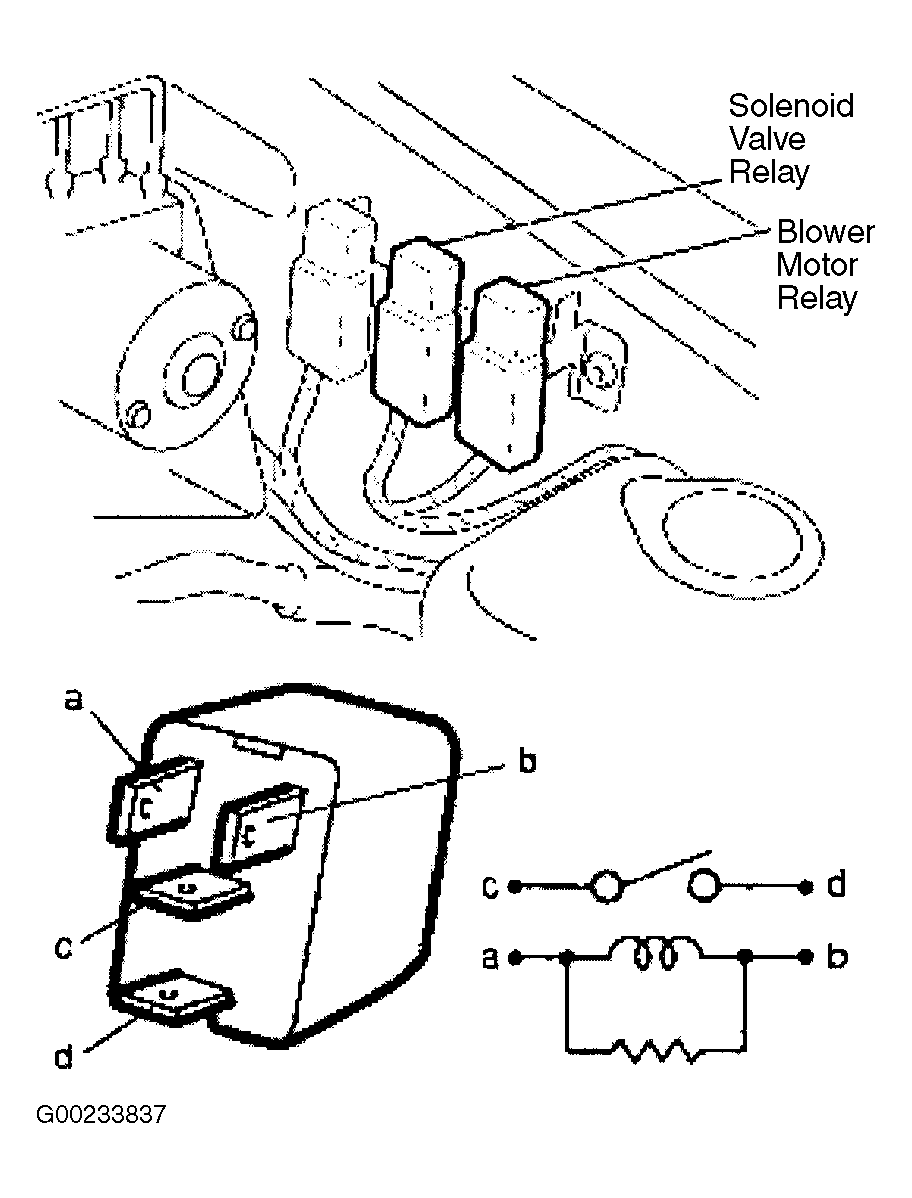

Fig 1: Testing Rear Blower Motor Relay & Solenoid Valve Relay
G00233837Courtesy of SUZUKI OF AMERICA CORP.
