Blower Motor (Front)

NOTE: For circuit reference, see CONNECTOR IDENTIFICATION and/or WIRING DIAGRAMS .

Disconnect blower motor assembly. Connect a ohmmeter across the terminals as shown. See Fig 1.
Connect battery to blower motor as shown, then check that the blower motor operates smoothly. See Fig 1.

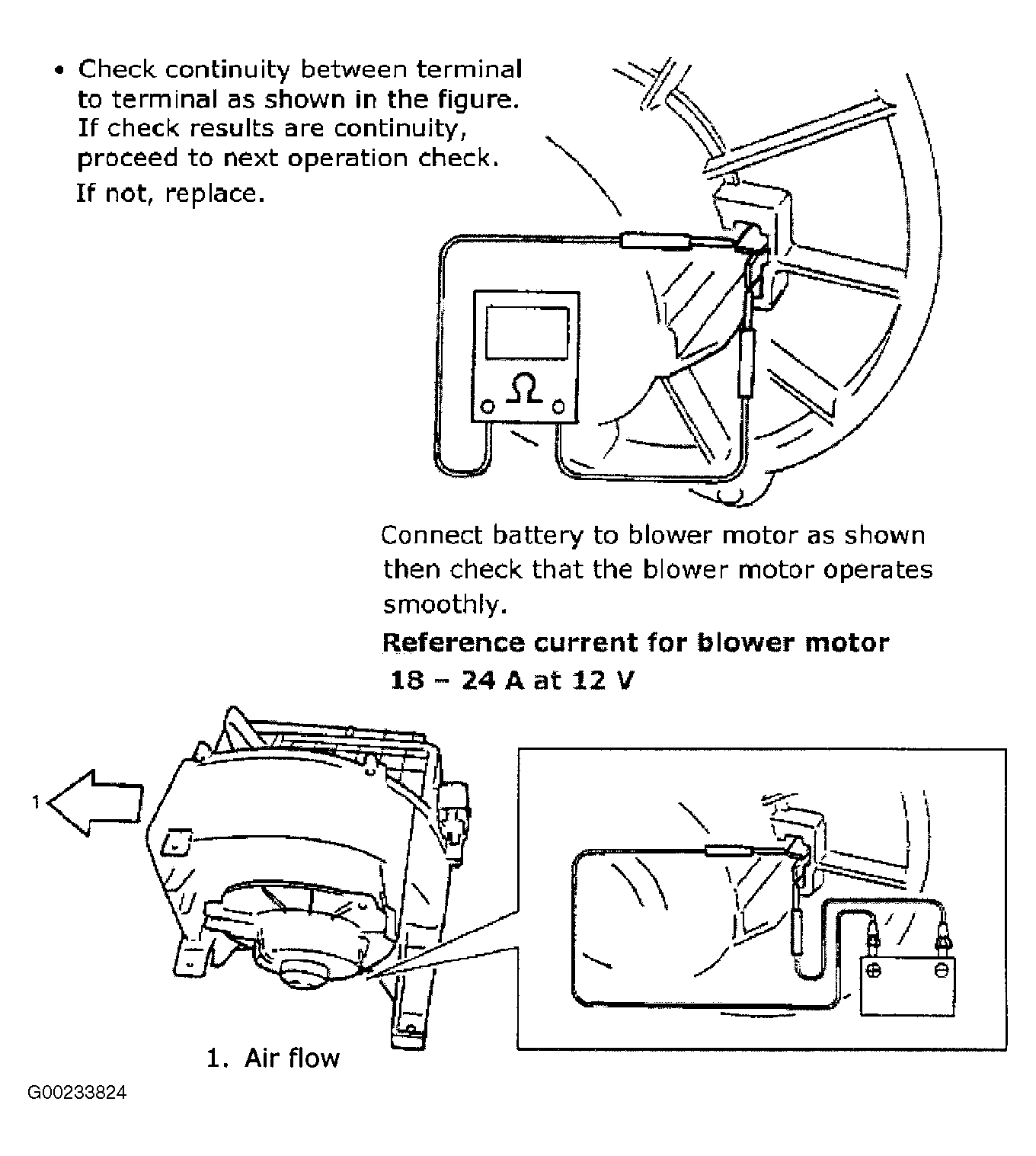

Fig 1: Testing Blower Motor

Courtesy of SUZUKI OF AMERICA CORP.
