Rear Door Glass Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal sequence to install door glass. However, be careful of the following points.

Securely seal door sealing cover (1) with adhesive (2).

Fig 1: Sealing Door Sealing Cover
Courtesy of SUZUKI OF AMERICA CORP.
When weather-strip is hardened, water leak may develop. In such case, replace it with new one.
Apply instantaneous adhesive to hatched part "A" between partition glass (2) and partition weather strip (1).

NOTE:

Horizontal adhesive application range should be in 25 - 35 mm (0.98 - 1.38 in.) from each convex corner of partition glass.
Do not overflow instantaneous adhesive from edge of partition weather strip (1).

CAUTION: Never use instaneous adhesive eroding rubber.

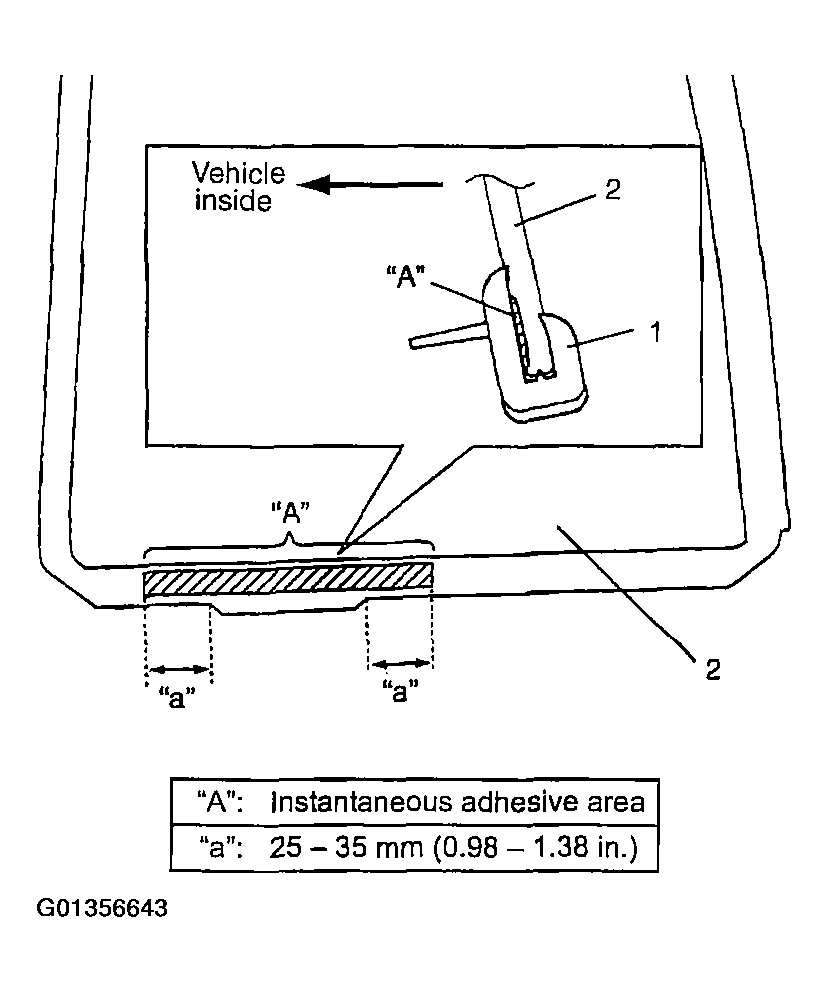

Fig 2: Applying Adhesive

Courtesy of SUZUKI OF AMERICA CORP.
