Front Door Glass Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure to install door glass noting the following points:

Tighten glass attaching screws (1) to specified torque. Tighten front screw first, then rear screw.
Tightening torque

Glass attaching screw (front and rear) (a): 2.5 N.m (0.25 kg-m, 1.8 lb-ft)

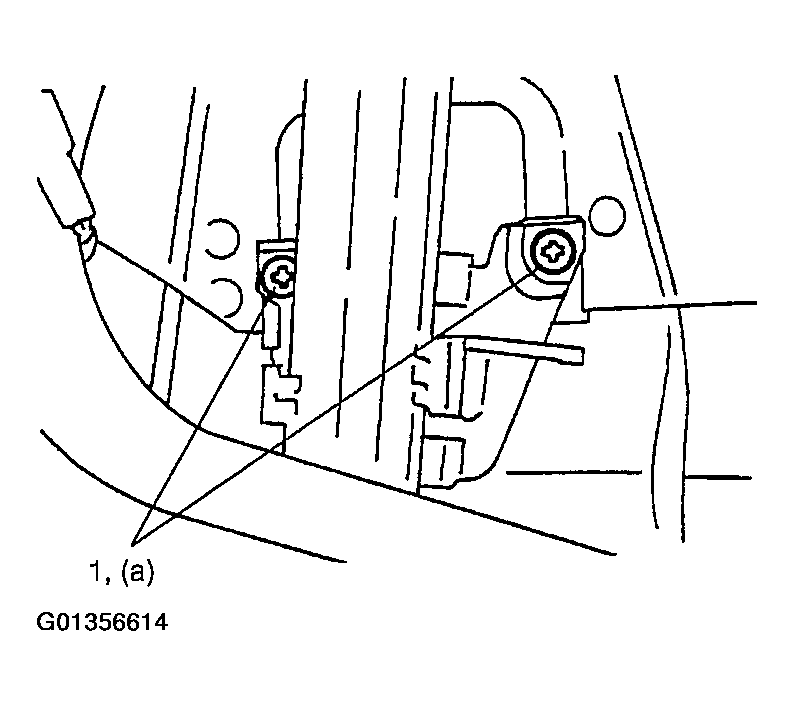

Fig 1: Tightening Glass Attaching Screws
Courtesy of SUZUKI OF AMERICA CORP.
When window becomes hard to raise and lower, adjust screws (1) to correct tilted glass as shown in the figure.

Fig 2: Adjusting Screws To Correct Tilted Glass
Courtesy of SUZUKI OF AMERICA CORP.
Adjust equalizer of window regulator so that measurement A and B are equal.

Fig 3: Adjusting Equalizer
Courtesy of SUZUKI OF AMERICA CORP.
Secure door sealing cover (1) with adhesive (2).

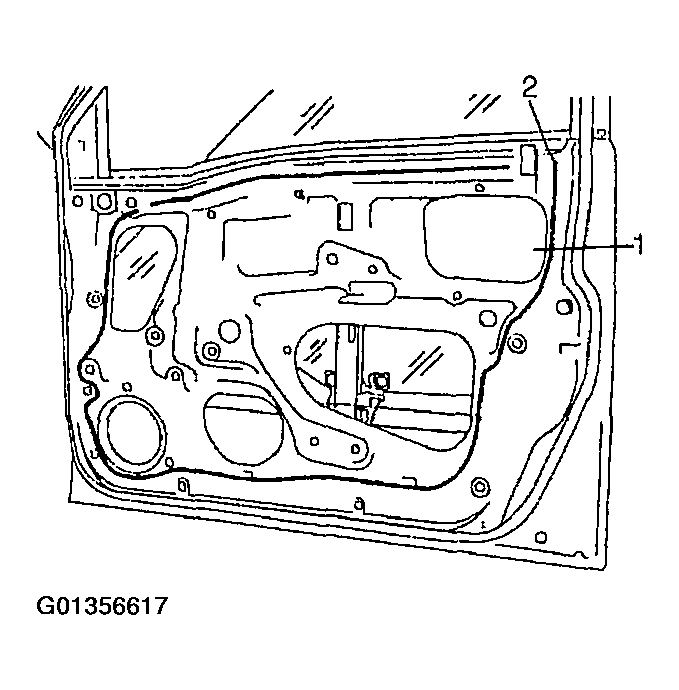

Fig 4: Securing Door Sealing Cover

Courtesy of SUZUKI OF AMERICA CORP.
