Door Mirror Heater Switch Inspection
WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Remove mirror heater switch from instrument panel.

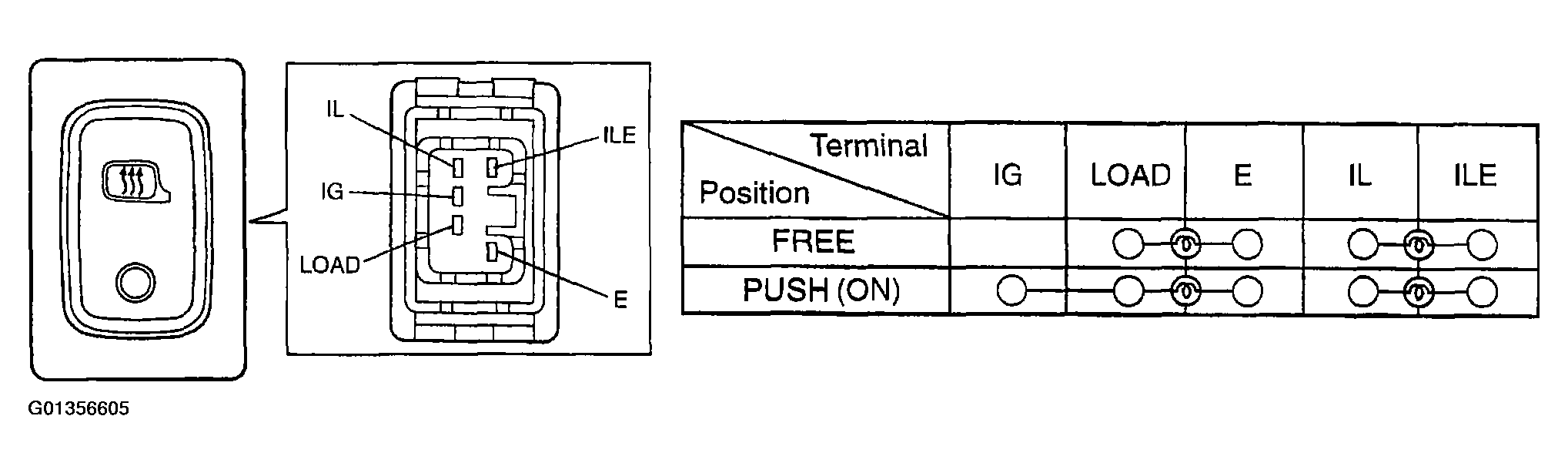

- Check for continuity between terminals at each switch position as shown in the figure. If check result is not as specified, replace switch.
Courtesy of SUZUKI OF AMERICA CORP.
