Washer Pump Inspection (Front And Rear)
WARNING: This page is about a different car, the 2004 Suzuki XL-7, 2004 Suzuki Grand Vitara, 2003 Suzuki XL-7, and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

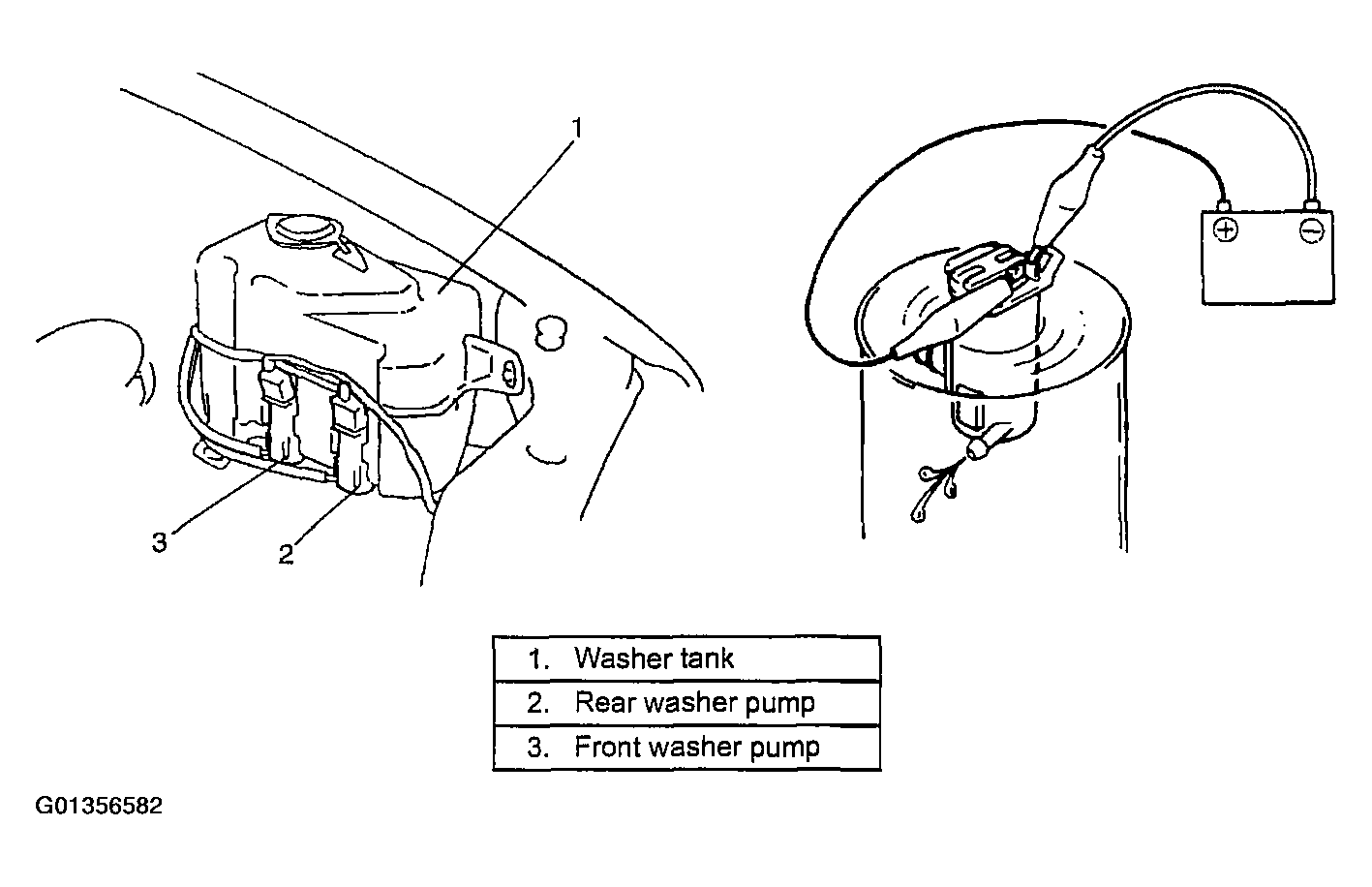

Connect battery (+) and (-) terminals to pump (+) and (-) terminals respectively to check pumping rate. Check for both front and rear washer pump.
Washer pump pumping rate
Front: More than 1.2 L/min. (2.5 US pt./min., 2.1 lmp pt./min.)
Rear: More than 1.0 L/min. (2.1 US pt./min., 1.8 lmp pt./min.).
