WARNING: This page is about a different car, the 2004 Suzuki XL-7 and 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

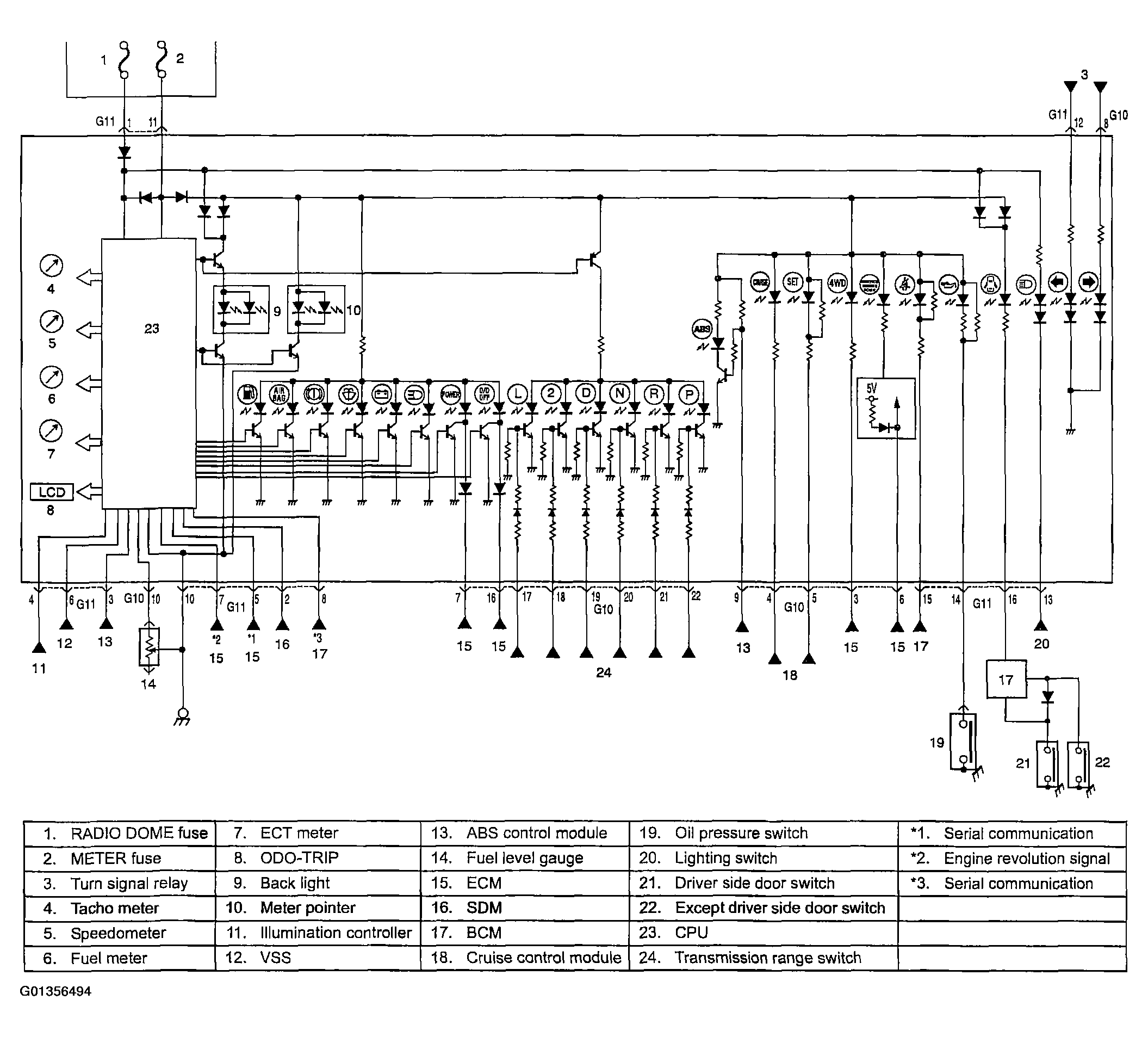

Fig 1: Combination Meter Schematic
Courtesy of SUZUKI OF AMERICA CORP.

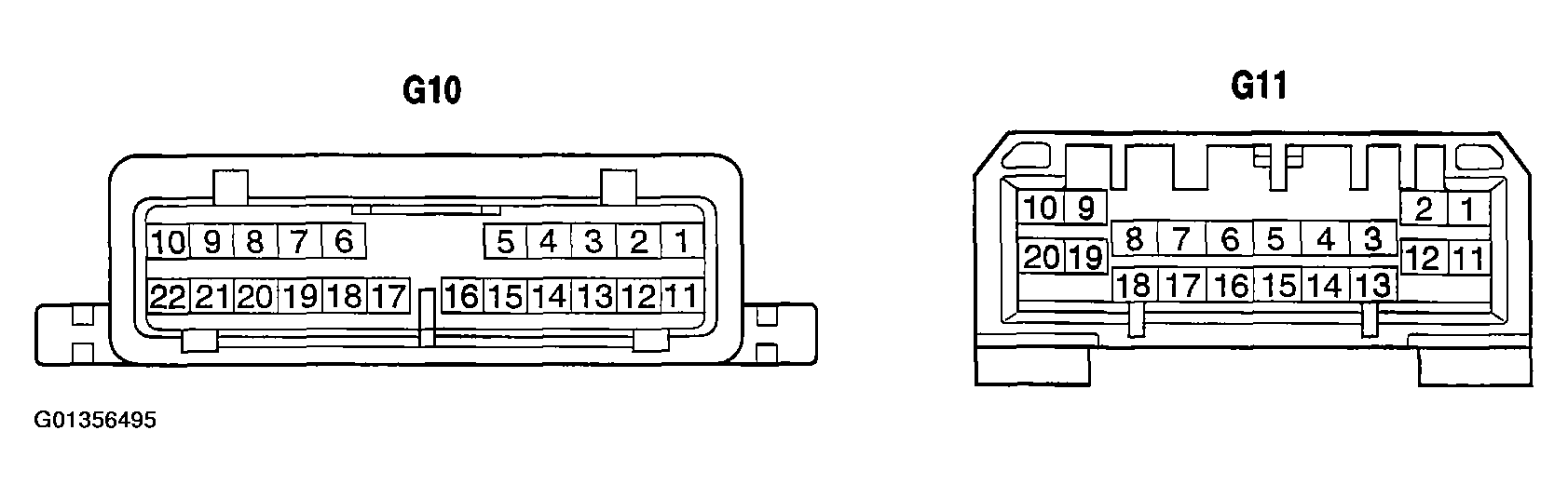

Fig 2: Identifying Combination Meter Terminals (Viewed From Harness Side)
